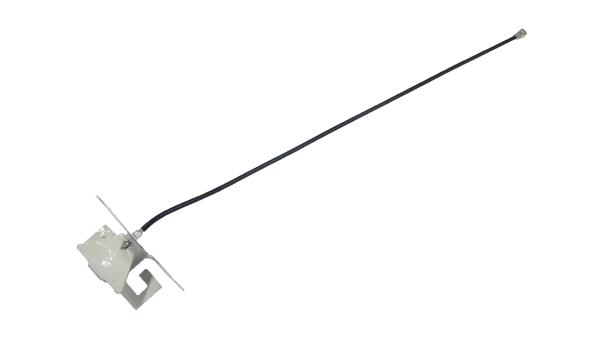

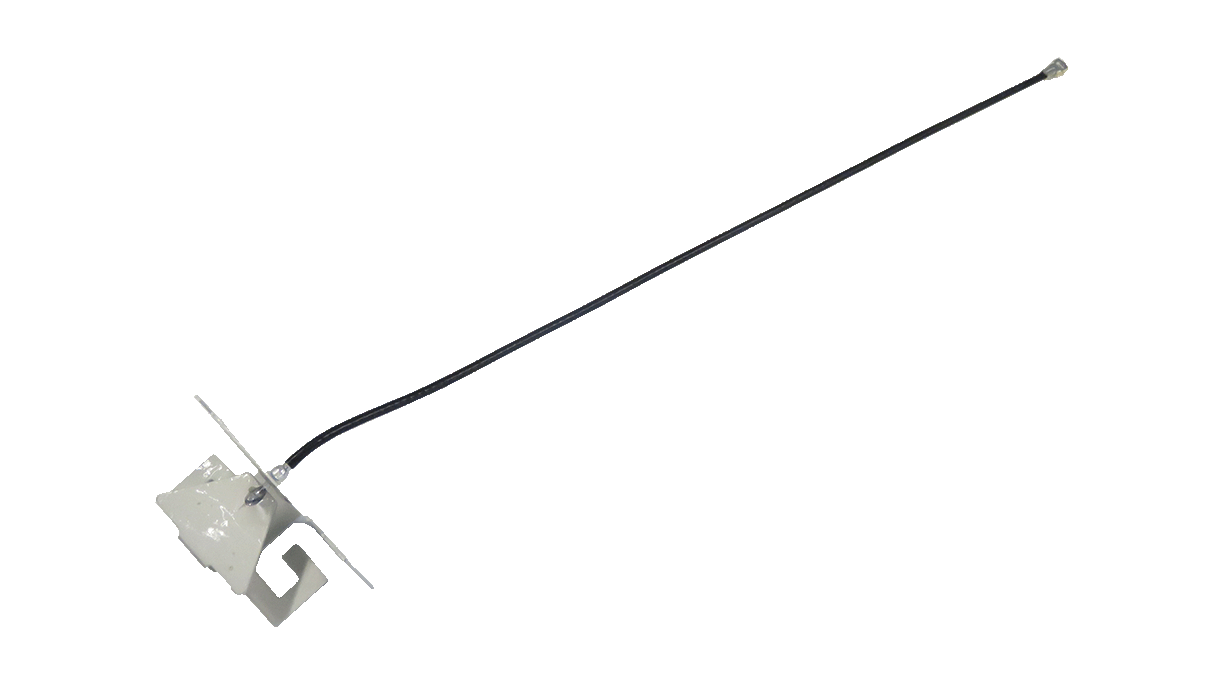

The EMB-910003 antenna element is a tri-band monopole antenna that covers the 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi bands. It is a compact, vertically polarized antenna designed for use in multi-antenna platforms where polarization diversity and element-to-element isolation are key objectives. Its omnidirectional radiation patterns are well-suited for ceiling-mounted and high-density deployments, such as in office spaces and airports.

• Easy to install: the antenna mounts directly to a metal ground plane using two screws
• Small and low-profile: the antenna can be easily integrated into tight spaces or onto multi-antenna platforms
• The high-impedance bandwidth exceeding 2.4 GHz enables good impedance matching and radiation efficiency in a variety of deployment scenarios, including those affected by obstructions
• Comes with a micro-coaxial cable soldered to the element, terminated with a U.FL-style connector

Specifications
