DAB 200 MHz Yagi Antenna Series
BY3-XG is a family of DAB 200 MHz Yagi Antennas
| Frekvens | 220 – 240 MHz |
|---|---|
| Gain | BY1-6G: 6 dBd, 8.15 dBi BY1-7G: 7 dBd, 9.15 dBi BY1-9G: 9 dBd, 11.15 dBi |
| Stik | Type N-female |
| Kabel | Approx. 0.5 m RG213/U |
| Længde/højde | BY1-6G: 830 x 620 mm BY1-7G: 1200 x 670 mm BY1-9G: 2000 x 670 mm |
| Montering | Fixed Tube Bracket in Galvanized Iron (included) |
| Monteringssted | On tube (Ø 20 – 65 mm, vertical or horizontal) |
| Max. effekt | 150 Watt |

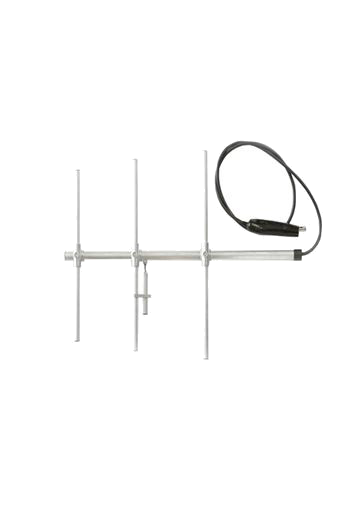

BY1-6G – 6 dBd, 8.15 dBi In Box
BY1-7G – 7 dBd, 9.15 dBi In Box
BY1-9G – 9 dBd, 11.15 dBi In Box
