The GPSGL-TMG-SPI-40NCB timing reference antennas are specifically designed for
long-lasting, trouble-free deployments in congested cell-site applications. The low
noise, high gain amplifier is well suited to address attenuation issues associated with
applications requiring longer cable runs.
The proprietary quadrifiliar helix design, coupled with multi-stage filtering provides
superior out-of-band rejection and lower elevation pattern performance than
traditional patch antennas. This multi-band antenna covers GPS L1, GALILEO L1 as well
as GLONASS E1 frequencies.
Their unique radome shape sheds water and ice, while eliminating problems

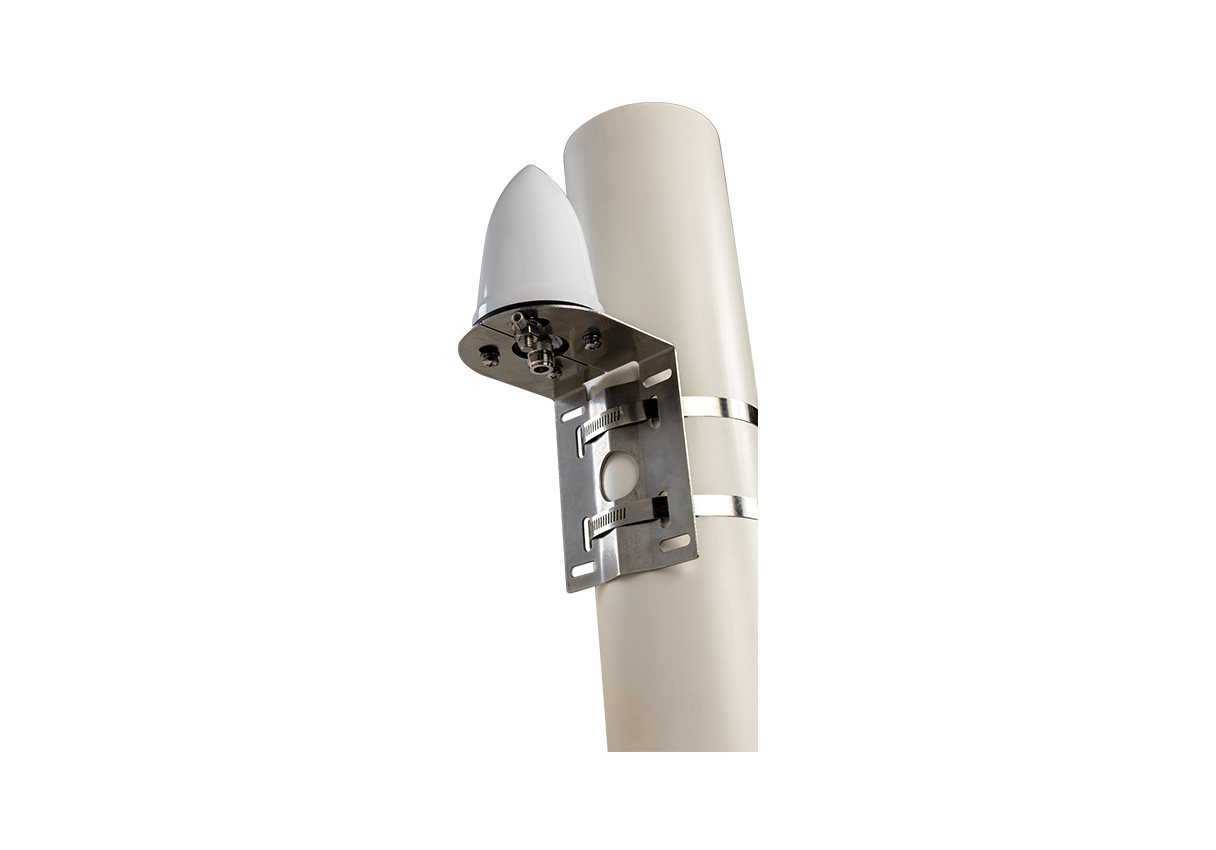

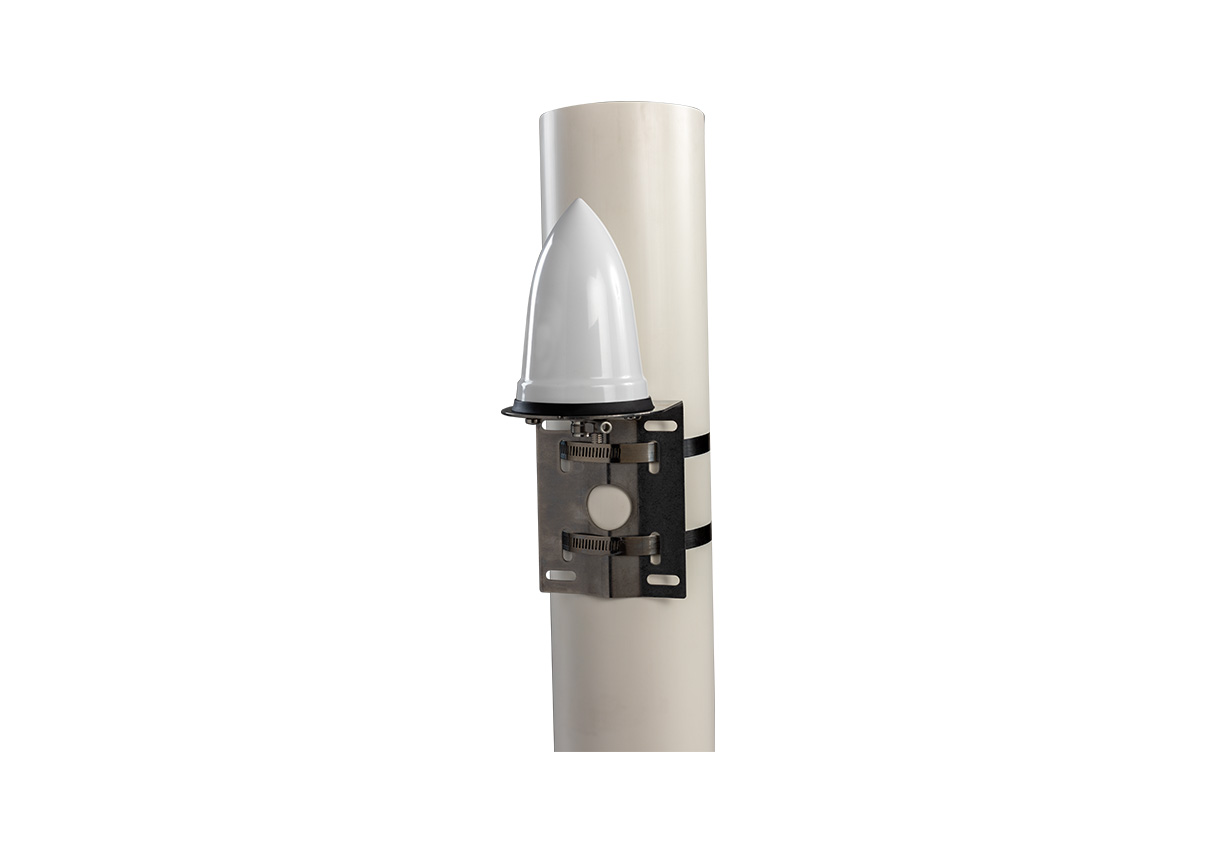

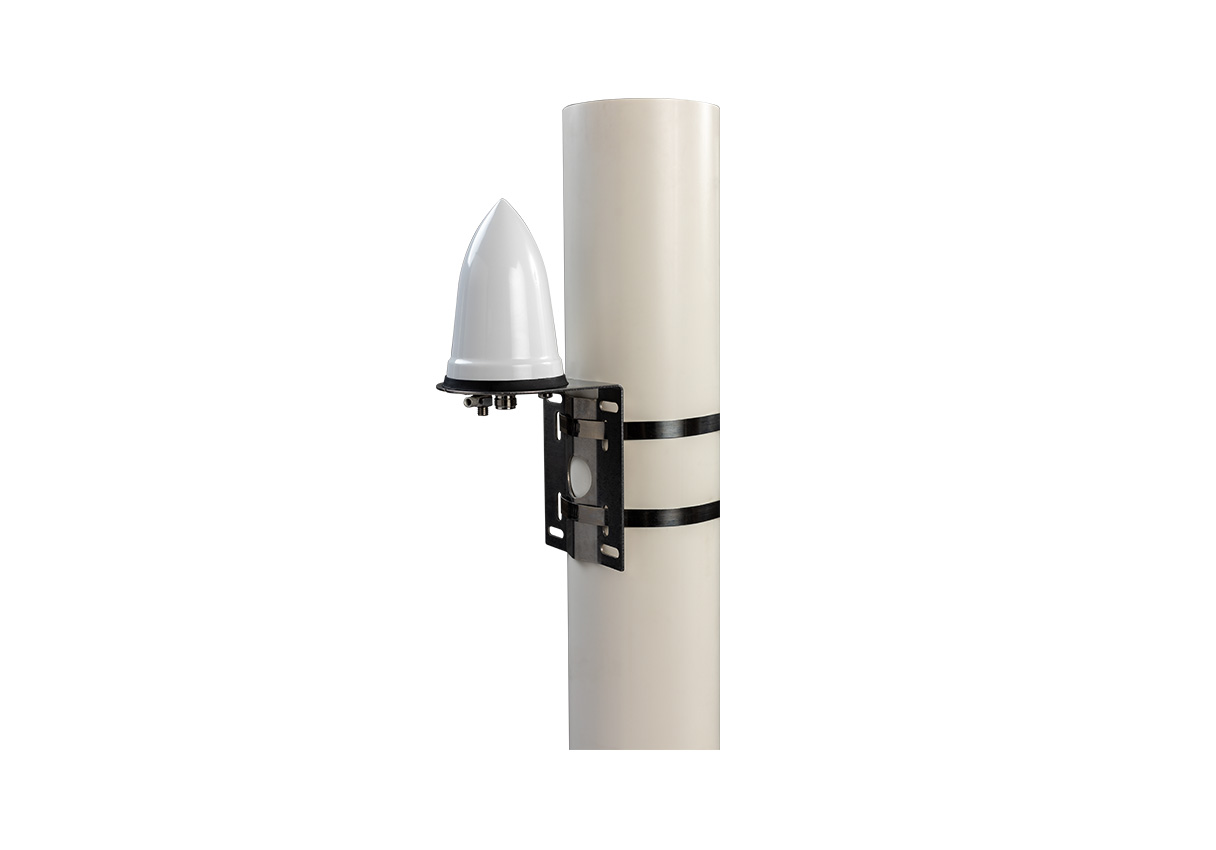

associated with bird perching. The antenna comes with surge compliant mounting
that addresses industry grounding requirements. Custom models or site kit options
are also available.
This antenna is made of materials that fully comply with provisions stipulated
by EU directives RoHS 2002/95/EC. The antenna provides integrated, on-board
lightning protection capability that alleviates the need for downstream, in-line surge
suppressors. The antenna also features ESD, reverse polarity protection and transit
voltage suppression.
