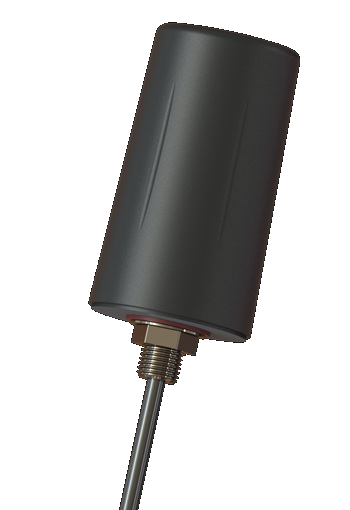

Wideband Terminal Antenna with Fixed Cable for IoT and M2M Applications
A rugged, tamper-proof wideband terminal antenna that combines cellular/mobile GSM (2G), UMTS (3G), LTE (4G), 5G NR (5G), and Wi-Fi frequencies. The antenna is ideal for fleet management, IoT, and M2M applications, providing a stable connection in critical areas.
| Frequency | 617–960 MHz, 1427–1518 MHz, 1710–2170 MHz, 2300–2690 MHz, 3300–3800 MHz |
|---|---|
| Gain | -1 dBd, 1.15 dBi (617–790 MHz) 0 dBd, 2.15 dBi (790–960 MHz) 3 dBd, 5.15 dBi (1427–2690 MHz) 5 dBd, 7.15 dBi (3300–3800 MHz) Measured on a Ø50 cm ground plane |
| Connector | See “Ordering Information” |
| Cable | RG58/U |
| Length/Height | Ø 46 x 110 mm |
| Installation | Bolt-on with adhesive |
| Installation Location | On vertical or horizontal surfaces (conductive). For example, car roofs, meter cabinets, and brackets |
| Max. power | 40 W |
| IP rating | IP65 (when mounted) |
48201-000 – 10.0 m RG58/U + SMA male – Bulk Packaging
48201-010 – 5.0 m RG58/U + SMA male – Bulk Packaging
48201-001 – 10.0 m RG58/U + SMA male – In polybag
48201-011 – 5.0 m RG58/U + SMA male – In Polybag
48201-103 – 10.0 m RG58/U + SMA male + Mount (10000-141) – Box
48201-113 – 5.0 m RG58/U + SMA male + Mount (10000-141) – Box
