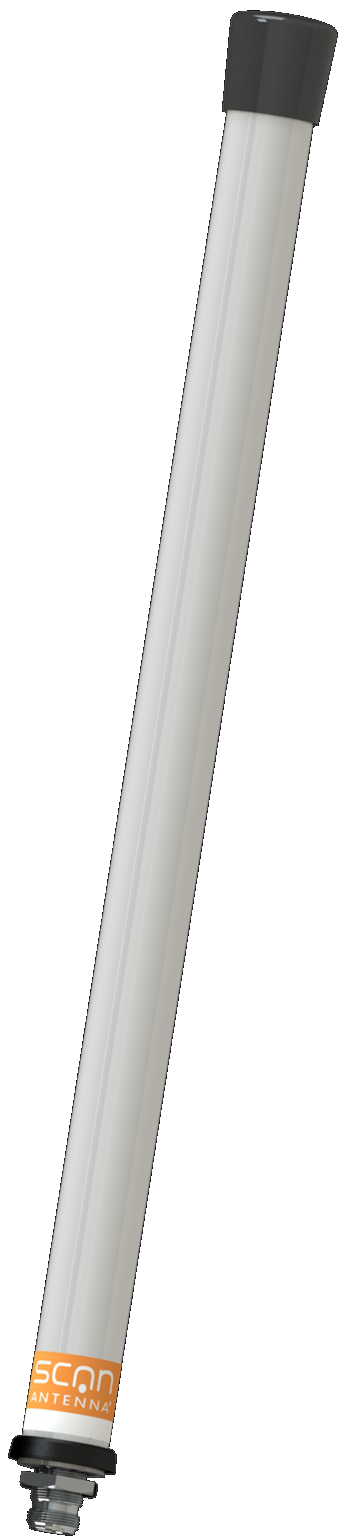

5G Wall Antenna, Multiband 698–3800 MHz
The WAM5G is a long-range, high-gain multiband antenna covering 698–3800 MHz. This wall-mounted antenna is suitable for GSM (2G), UMTS (3G), LTE (4G), and 5GNR (5G) devices. The antenna supports Public Safety, LTE 700/800 MHz, IoT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications, and more.
| Frequency | 698–960 MHz, 1427–1518 MHz, 1710–2170 MHz, 2300–2690 MHz, 3300–3800 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi (698–960 MHz) 3 dBd, 5.15 dBi (1427–1518/1710–2170 MHz) 7 dBd, 9.15 dBi (2300–2690/3300–3800 MHz) |
| Connector | N-female |
| Cable | No cable included |
| Length/Height | 457 mm |
| Installation Location | On a wall or pole |
| Max. power | 100 W |
| IP Rating | IP66 |
40102-000 – Antenna only (Bulk packaging)
40102-001 – Antenna only (Polybag)
40102-011 – Antenna + Wall Bracket + Mounting Kit (Polybag)
40102-021 – Antenna + Pole Bracket + Mounting Kit (Polybag)
10103-011 – Bracket + Mounting Kit (Polybag)
The WAM5G is a long-range, high-gain multiband antenna covering 698–3800 MHz. This wall-mounted antenna is suitable for GSM (2G), UMTS (3G), LTE (4G), and 5GNR (5G) devices. The antenna supports Public Safety, LTE 700/800 MHz, IoT/M2M, 868/915 MHz, cellular/mobile, 2G/3G/4G/5G, CCTV, security, smart metering, remote telemetry applications, and more.
| Frequency | 698–960 MHz, 1427–1518 MHz, 1710–2170 MHz, 2300–2690 MHz, 3300–3800 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi (698–960 MHz) 3 dBd, 5.15 dBi (1427–1518/1710–2170 MHz) 7 dBd, 9.15 dBi (2300–2690/3300–3800 MHz) |
| Connector | N-female |
| Cable | No cable included |
| Length/Height | 457 mm |
| Installation Location | On a wall or pole |
| Max. power | 100 W |
| IP Rating | IP66 |
