Item number: 11096-001U

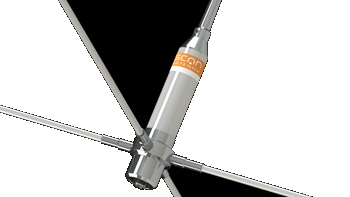

VHF96 UNIVERSAL – 6 dB VHF Fibreglass Antenna 1.4 m

6 dB VHF Fibreglass Antenna 1.4 m

VHF96 UNIVERSAL – 6 dB VHF Fibreglass Antenna 1.4 m

VHF96 UNIVERSAL – 6 dB VHF Fibreglass Antenna 1.4 m – billede 2

VHF96 UNIVERSAL – 6 dB VHF Fibreglass Antenna 1.4 m – billede 3

VHF96 UNIVERSAL – 6 dB VHF Fibreglass Antenna 1.4 m – billede 4

Description

Variants

Downloads

Accessories

Description

Ingen

Heavy duty high gain antenna for base station and maritime use
Easy installation directly on Ø 27 mm pole/mast
Full length 5/8 λ Ground Plane Antenna design

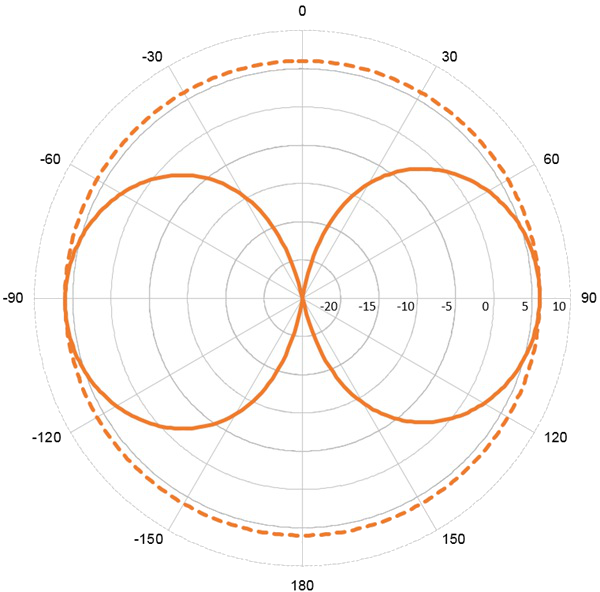

Full omni-directional radiation pattern
No groundplane needed

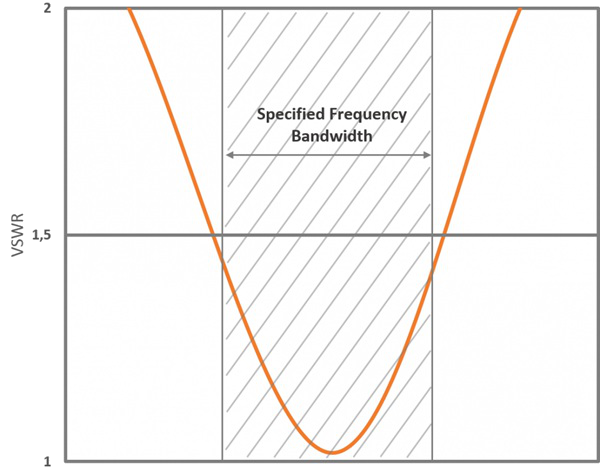

Customer tuneable within 140-185 MHz (Cutting Table included)

Specifikationer

Frekvens	140 – 185 MHz (Tuneable within these frequencies)
Gain	6 dB (Marine), 3 dBd, 5.1 dBi
Stik	UHF-female
Kabel	No cable supplied
Længde/højde	Max. 1400 mm (depending on frequency)
Montering	On pole Ø 27 mm only (Not supplied)
Max. effekt	250 W
IP-klasse	IP24

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Ingen

Heavy duty high gain antenna for base station and maritime use
Easy installation directly on Ø 27 mm pole/mast
Full length 5/8 λ Ground Plane Antenna design
Full omni-directional radiation pattern
No groundplane needed
Customer tuneable within 140-185 MHz (Cutting Table included)

Specifikationer

Frekvens	140 – 185 MHz (Tuneable within these frequencies)
Gain	6 dB (Marine), 3 dBd, 5.1 dBi
Stik	UHF-female
Kabel	No cable supplied
Længde/højde	Max. 1400 mm (depending on frequency)
Montering	On pole Ø 27 mm only (Not supplied)
Max. effekt	250 W
IP-klasse	IP24
