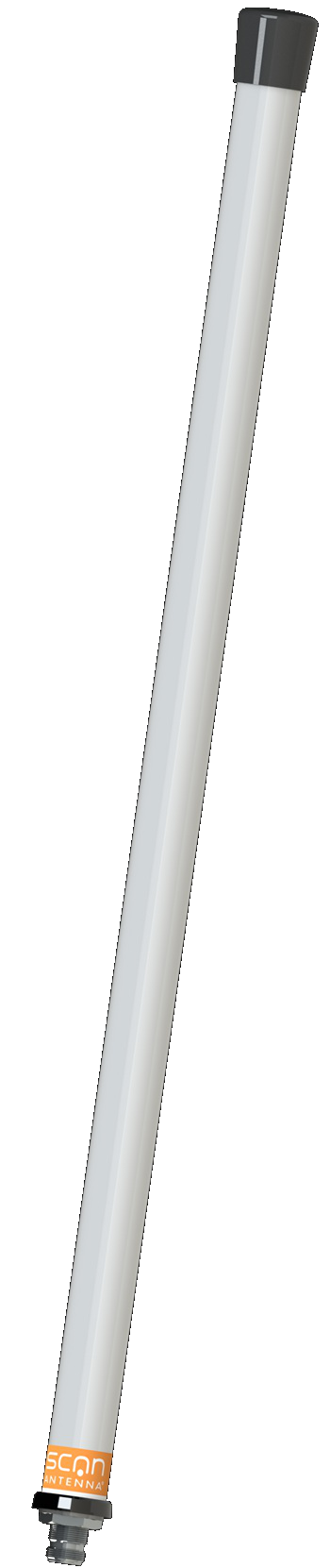

3–10 dB UHF Multiband Antenna, 0.64 m
Multiband antenna that combines cellular/mobile GSM (2G), UMTS (3G), LTE (4G), 5G, and Wi-Fi frequencies for phone and Wi-Fi communication on vessels or on land. Ideal for IoT and M2M applications.
| Frequency | 410–430 MHz, 698–960 MHz, 1710–2170 MHz, 2300–2690 MHz, 3300–3800 MHz |
|---|---|
| Gain | 3 dB (Marine), 0 dBd, 2.15 dBi (410–430 MHz/698–960 MHz) 6 dB (Marine), 3 dBd, 5.15 dBi (1427–1518/1710–2170 MHz) 10 dB (Marine), 7 dBd, 9.15 dBi (2300–2690/3300–3800 MHz) |
| Connector | N-female |
| Cable | No cable included |
| Length/Height | 640 mm |
| Installation | On a 1″ threaded pole or bracket (G1″-11 thread) using the supplied fixed Revolving Nut |
| Installation Location | On mast or deck |
| Max. power | 100 W |
| IP Rating | IP66 |
