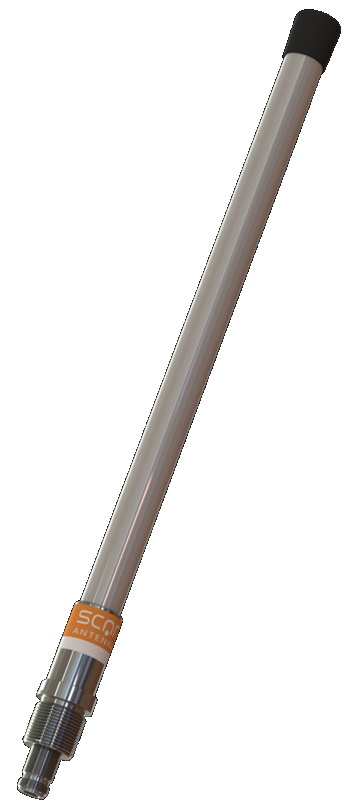

3 dB UHF Multiband Antenna 0.44 m
Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G) and WIFI frequencies e.g. for near cost vessels or land based phone and WIFI communication. Ideal for IOT and M2M applications.
| Frekvens | 790 – 960 MHz, 1710 – 2170 MHz, 2412 – 2484 MHz, 2500 – 2690 MHz (LTE 800/1800/2600, UMTS 900/2100, GSM 850/900/1800/1900(PCS) and WIFI 2.4/5 (WLAN a/b/g/h/j/n/p/ac)) |
|---|---|

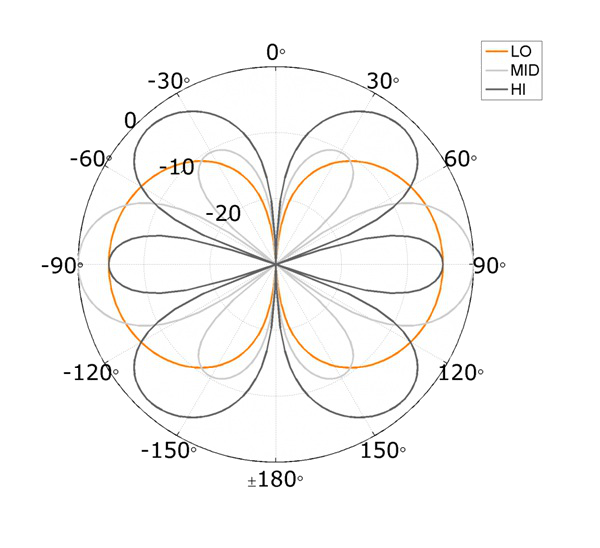

| Gain | 3 dB (Marine), 0 dBd, 2.1 dBi (790-960 MHz) 6 dB (Marine), 3 dBd, 5.1 dBi (1710-2170 MHz) 10 dB (Marine), 7 dBd, 9.1 dBi (2412-2690 MHz) |
| Stik | N-female |
| Kabel | No cable supplied |
| Længde/højde | 435 mm |

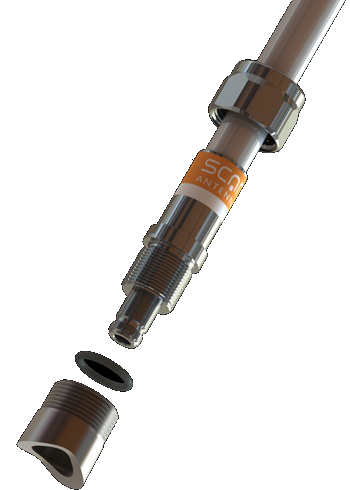

| Montering | On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets |
| Monteringssted | On mast or deck |
| Max. effekt | 100 W |
| IP-klasse | IP66 |
14493-000 – Antenna only – bulk packing
14493-001 – Antenna only – in Polybag
14493-002 – Antenna only – in Carton tube
14493-431 – Antenna + 1″ Revolving Nut Kit – in Polybag
14493-432 – Antenna + 1″ Revolving Nut Kit – in Carton tube
