Rugged, low-profile, roof-mounted multiband antenna
Heavy-duty omnidirectional dual-band Wi-Fi antenna for through-hole roof mounting. End-of-life product; last chance to buy. For alternatives, see the Extendr series.
| Frequency | 2400–2500 MHz, 4915–5825 MHz (IEEE 802.11 (WLAN) a/b/g/h/j/n/p/ac) |
|---|---|
| Connectors | See “Ordering Information” |
| Cable | 1 m |

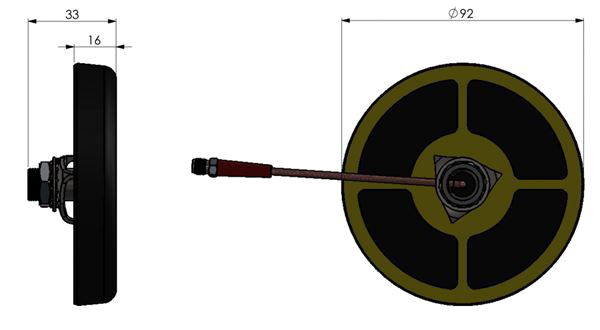

| Length/Height | 16 mm |
| Installation | Bolt-on with adhesive tape for effective sealing |
| Mounting Location | On a horizontal surface (Max. panel thickness 3 mm with the cable to the side, or 12 mm with the cable extending straight out from the antenna) |
| Max. power | 10 W |
| IP Rating | IP65 (When mounted) |
45201IP – RP-SMA(M) (Bulk packaging)
45800IP – 8-BAND-(5V) (Bulk packaging)
Heavy-duty omnidirectional dual-band Wi-Fi antenna for through-hole roof mounting. End-of-life product; last chance to buy. For alternatives, see the Extendr series.
| Frequency | 2400–2500 MHz, 4915–5825 MHz (IEEE 802.11 (WLAN) a/b/g/h/j/n/p/ac) |
|---|---|
| Connectors | See “Ordering Information” |
| Cable | 1 m |
| Length/Height | 16 mm |
| Installation | Bolt-on with adhesive tape for effective sealing |
| Mounting Location | On a horizontal surface (Max. panel thickness 3 mm with the cable to the side, or 12 mm with the cable extending straight out from the antenna) |
| Max. power | 10 W |
| IP Rating | IP65 (When mounted) |
