Name: PCTMI2458-RPSMA Very Low Profile Access Point… | PCTEL
SKU: PCTMI2458-RPSMA

Item number: PCTMI2458-RPSMA

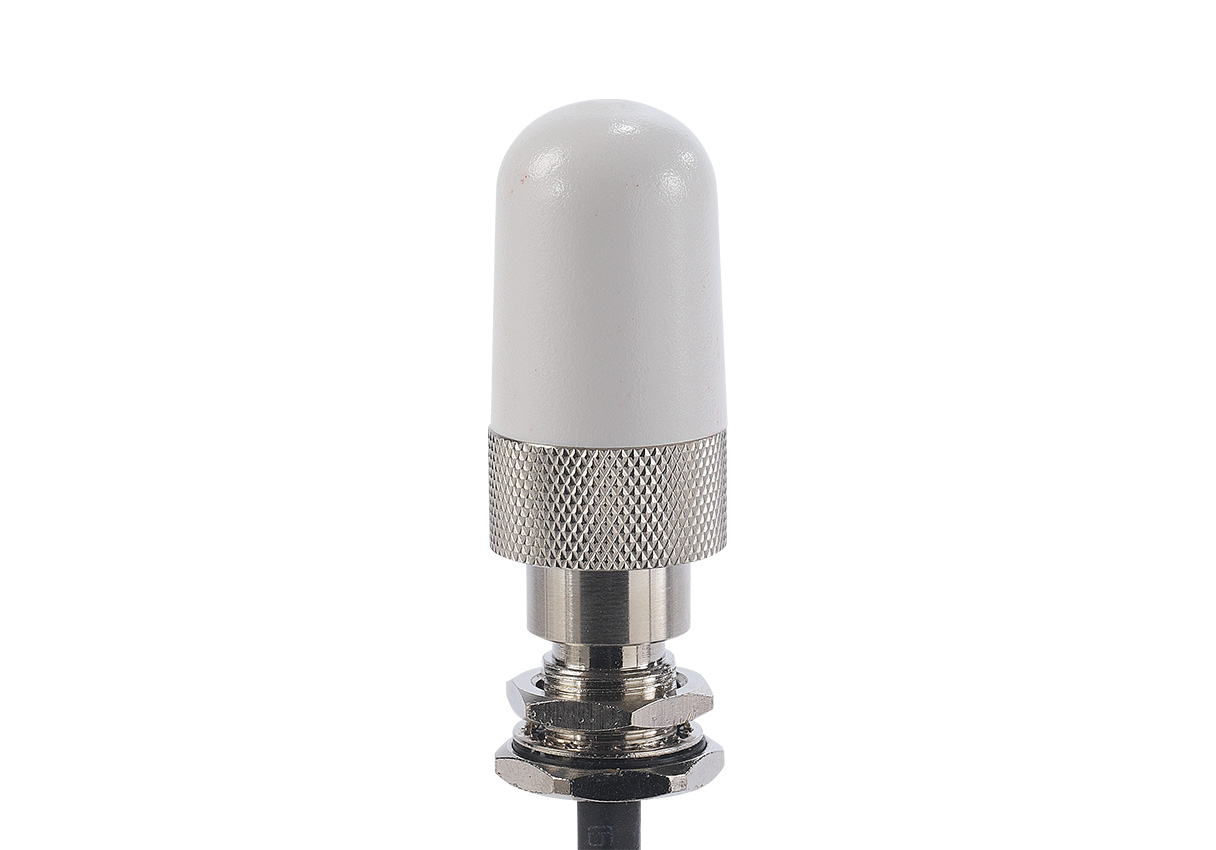

PCTMI2458-RPSMA – Very Low-Profile Access Point Antennas for Broadband Wireless

Rugged, UV-resistant housing

Description

Variants

Downloads

Accessories

Description

Designed for use in a wide variety of indoor applications, these very low-profile, omnidirectional antennas are optimized for use with Reverse Polarity TNC and SMA-compatible Wi-Fi access points.

Versatile — operates at 4 GHz and 5 GHz frequencies
Rugged — UL94 V0 plastic housing
Compact profile — No more than 1-1/2” inches long, including the connector; built directly onto an RP-TNC or RP-SMA plug connector

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	2.2 dBi, 4.0 dBi
Connectors	RP-TNC, RP-SMA, TNC, SMA, SMA Male
Installation	Direct RF connector
Max. power	10 W

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Designed for use in a wide variety of indoor applications, these very low-profile, omnidirectional antennas are optimized for use with Reverse Polarity TNC and SMA-compatible Wi-Fi access points.

Versatile — operates at 4 GHz and 5 GHz frequencies
Rugged — UL94 V0 plastic housing
Compact profile — No more than 1-1/2” inches long, including the connector; built directly onto an RP-TNC or RP-SMA plug connector

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	2.2 dBi, 4.0 dBi
Connectors	RP-TNC, RP-SMA, TNC, SMA, SMA Male
Installation	Direct RF connector
Max. power	10 W
