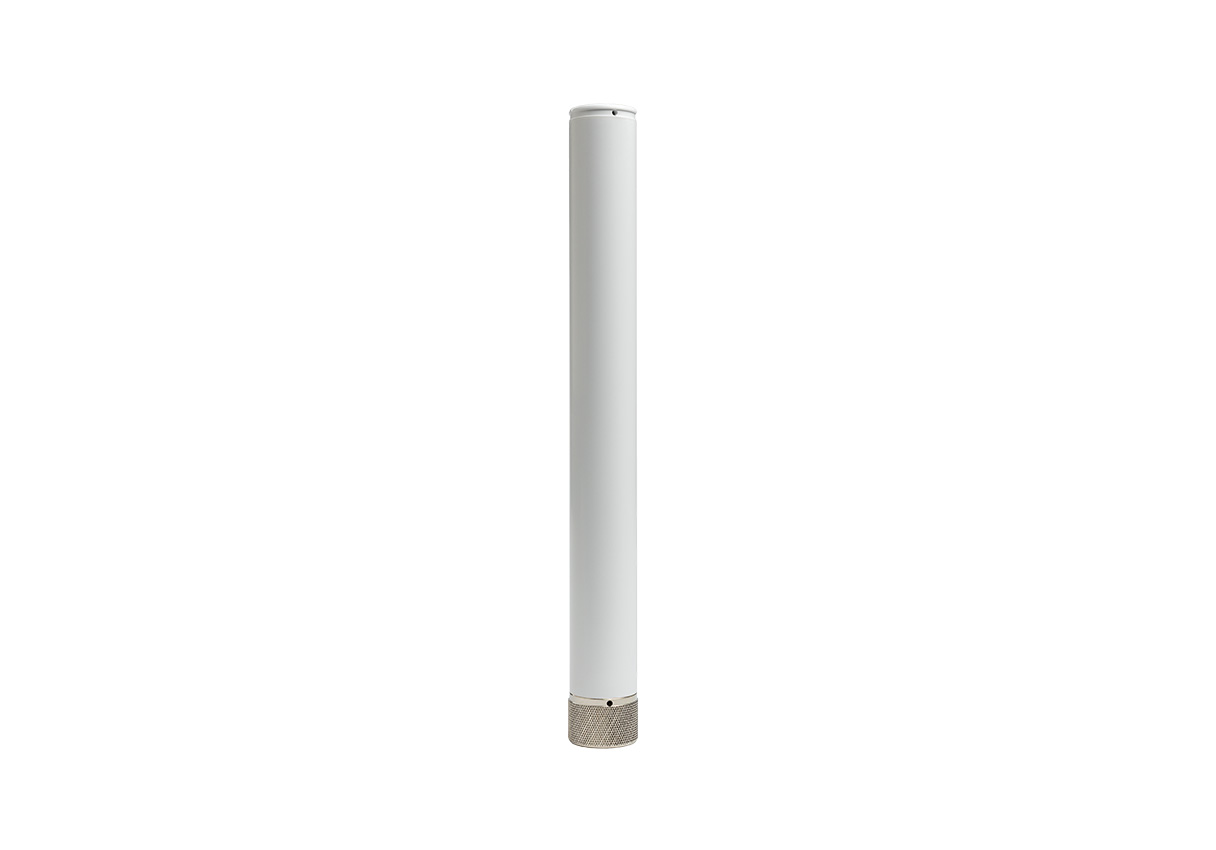

MHODB24490507NF-IP – VenU® Sealed Dual-Band High-Performance Omnidirectional Antennas

Omnidirectional coverage for broadband access applications

Description

Variants

Downloads

Accessories

Description

This high-performance omnidirectional antenna is designed to cover frequencies from 2.4 to 2.5 GHz and 4.94 to 5.925 GHz for broadband access applications. With the built-in N-female and N-male connector options at its base, it can be mounted directly on the radio equipment.

Optimal coverage – Covers frequencies from 2.4 to 2.5 GHz and 4.94 to 5.925
Rugged – Fully sealed, UV-resistant, IP67-compliant design protects against harsh environmental conditions
Low profile – To minimize visibility
Ease of connection – Integral N-female and N-male connector options at the base

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	5 dBi, 7 dBi
Plug	N Female, N Male
Installation	Direct RF connector
Max. power	25 W
IP Rating	IP67

Model Variants

MHODB24490507NM-IP

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Optimal coverage – Covers frequencies from 2.4 to 2.5 GHz and 4.94 to 5.925
Rugged – Fully sealed, UV-resistant, IP67-compliant design protects against harsh environmental conditions
Low profile – To minimize visibility
Ease of connection – Integral N-female and N-male connector options at the base

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	5 dBi, 7 dBi
Plug	N Female, N Male
Installation	Direct RF connector
Max. power	25 W
IP Rating	IP67

Model Variants

MHODB24490507NM-IP
