Name: HF510 TX/RX 5 m Two-Part MF/HF Fiberglass… | Scan Antennas
SKU: 13510-002

Item number: 13510-002

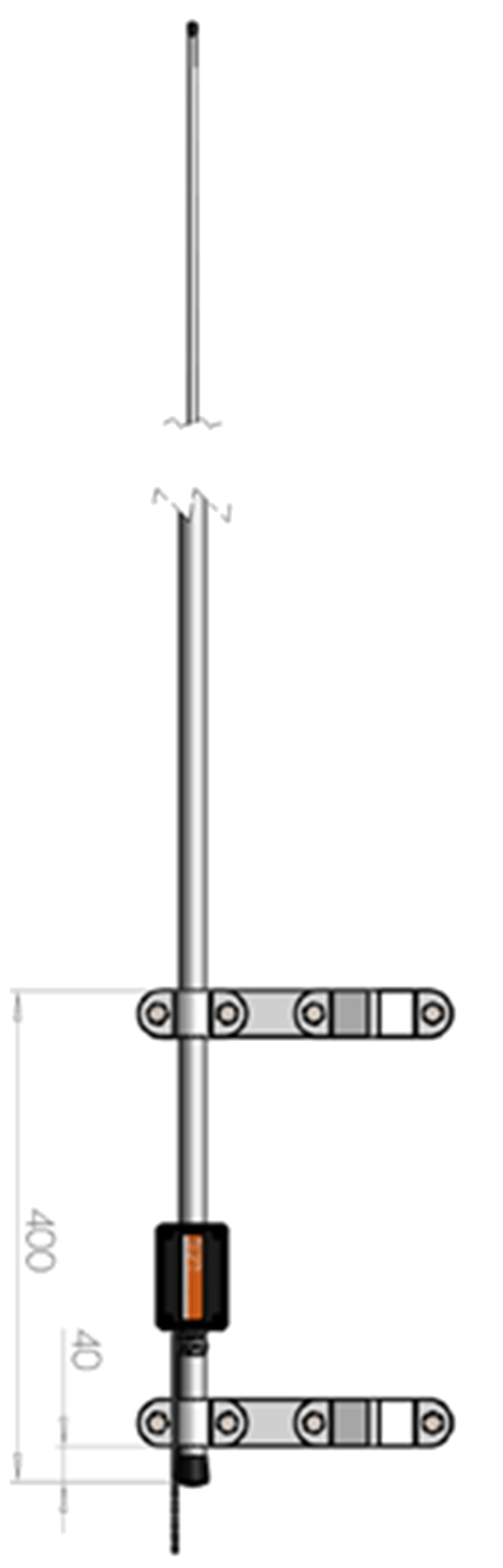

HF510 TX/RX – 5-meter two-part MF/HF fiberglass antenna with coaxial connection box

5-meter two-part MF/HF fiberglass antenna with coaxial connection box

Description

Variants

Downloads

Accessories

Description

None

High-quality 5-meter-high HF antenna for professional use
Designed for GMDSS installations
Rugged design
Chrome-plated solid brass joints
Designed for rail mounting
Connect via the screw terminal inside the connection box using standard coaxial cable (Ø 5–10 mm)
Full omni-directional radiation pattern

Specifications

Frequency	1.4–30 MHz (MF and HF)
Connector	Screw terminal inside the connection box
Cable	No cable included (Use a standard coaxial cable with a diameter of 5–10 mm)
Length/Height	5 m
Installation	Mast/Rail Mount Kit (Small) P/N 10000-153 (Not included!)
Installation Location	On a rail or pole (Ø 30–90 mm)
Max. power	500 W PEP

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

None

High-quality 5-meter-high HF antenna for professional use
Designed for GMDSS installations
Rugged design
Chrome-plated solid brass joints
Designed for rail mounting
Connect via the screw terminal inside the connection box using standard coaxial cable (Ø 5–10 mm)
Full omni-directional radiation pattern

Specifications

Frequency	1.4–30 MHz (MF and HF)
Connector	Screw terminal inside the connection box
Cable	No cable included (Use a standard coaxial cable with a diameter of 5–10 mm)
Length/Height	5 m
Installation	Mast/Rail Mount Kit (Small) P/N 10000-153 (Not included!)
Installation Location	On a rail or pole (Ø 30–90 mm)
Max. power	500 W PEP
