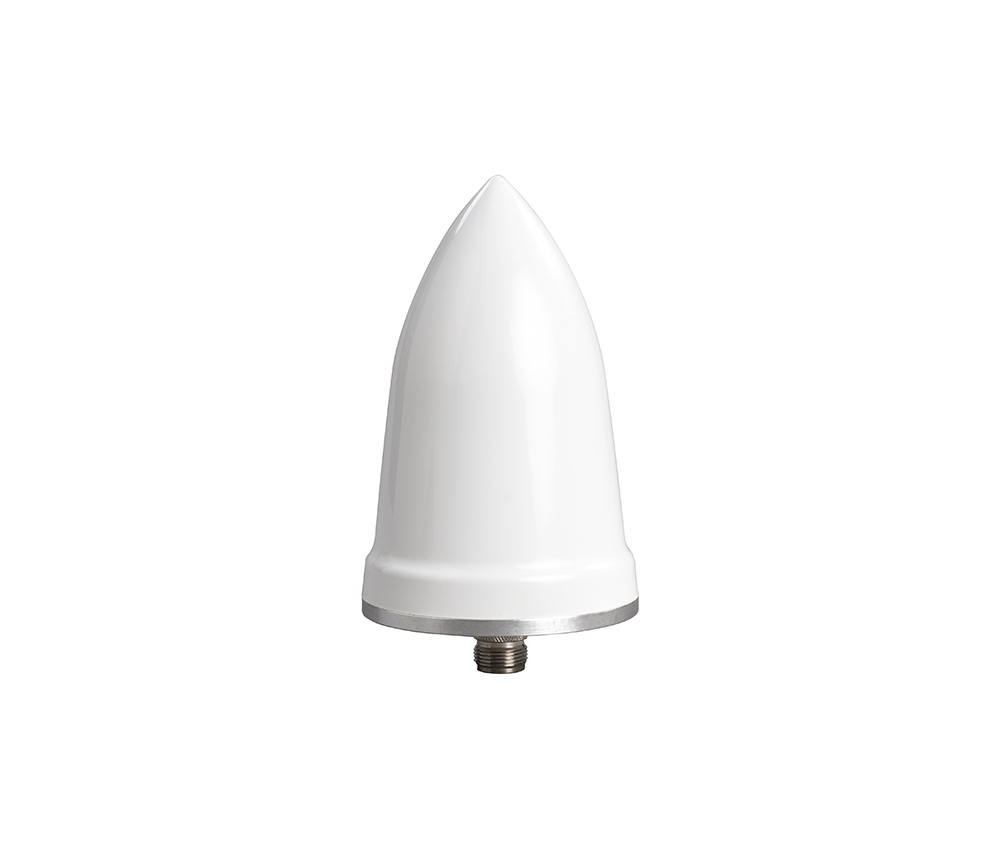

This GPS timing reference antenna features a low-noise, high-gain internal amplifier and multi-stage filtering to address attenuation issues in congested cell-site applications and over longer cable runs. Its integrated, on-board lightning protection eliminates the need for downstream, in-line surge suppressors.

• Powerful attenuation mitigation – Via a low-noise, high-gain 40 dB amplifier
• Superior filtering – A quadrifilar helix design with multi-stage filtering provides effective out-of-band rejection and improved elevation pattern performance
• Protection from the elements – The unique shape of the radome prevents problems with water, ice, and birds perching on it
• Rugged – materials comply with the provisions set forth in the EU RoHS Directive 2002/95/EC
• Eliminates the need for downstream, in-line surge suppressors—through integrated, on-board lightning protection

Specifications

Model Variants

• GPSL1-TMG-40N

GPSL1-TMG-40N
