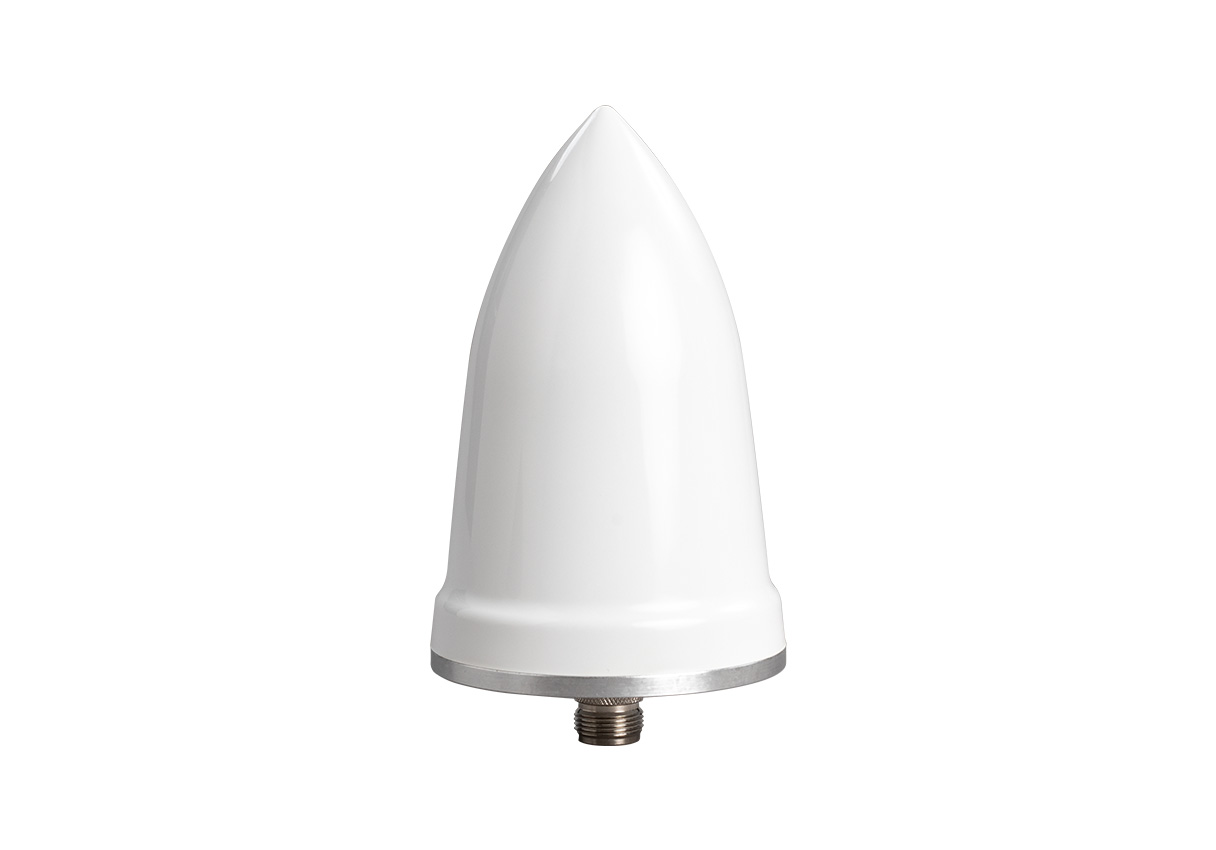

This GPS timing reference antenna features a low-noise, high-gain internal amplifier and multi-stage filtering to address attenuation issues in congested cell-site applications and over longer cable runs. It also features ESD protection, reverse polarity protection, and transient voltage suppression (TVS).

• Powerful attenuation mitigation – Via a low-noise, high-gain 40 dB amplifier
• Superior filtering – A quadrifilar helix design with multi-stage filtering provides effective out-of-band rejection and improved elevation pattern performance
• Protection from the elements – The unique shape of the radome prevents problems with water, ice, and birds perching on it
• Rugged – materials comply with the provisions set forth in the EU RoHS Directive 2002/95/EC

Specifications

Model Variants

• GPS-TMG-40NMS, GPS-TMG-40NCS

GPS-TMG-40NMS
GPS-TMG-40NCS
