Designed to address attenuation issues in congested cell-site applications, this GPS timing reference antenna features multi-stage filtering and a proprietary quadrifilar helix design to provide superior out-of-band rejection and better low-elevation pattern performance than traditional patch antennas.

• Powerful attenuation mitigation – Via a low-noise, high-gain 26 dB amplifier
• Superior filtering – A quadrifilar helix design with multi-stage filtering provides effective out-of-band rejection and improved elevation pattern performance

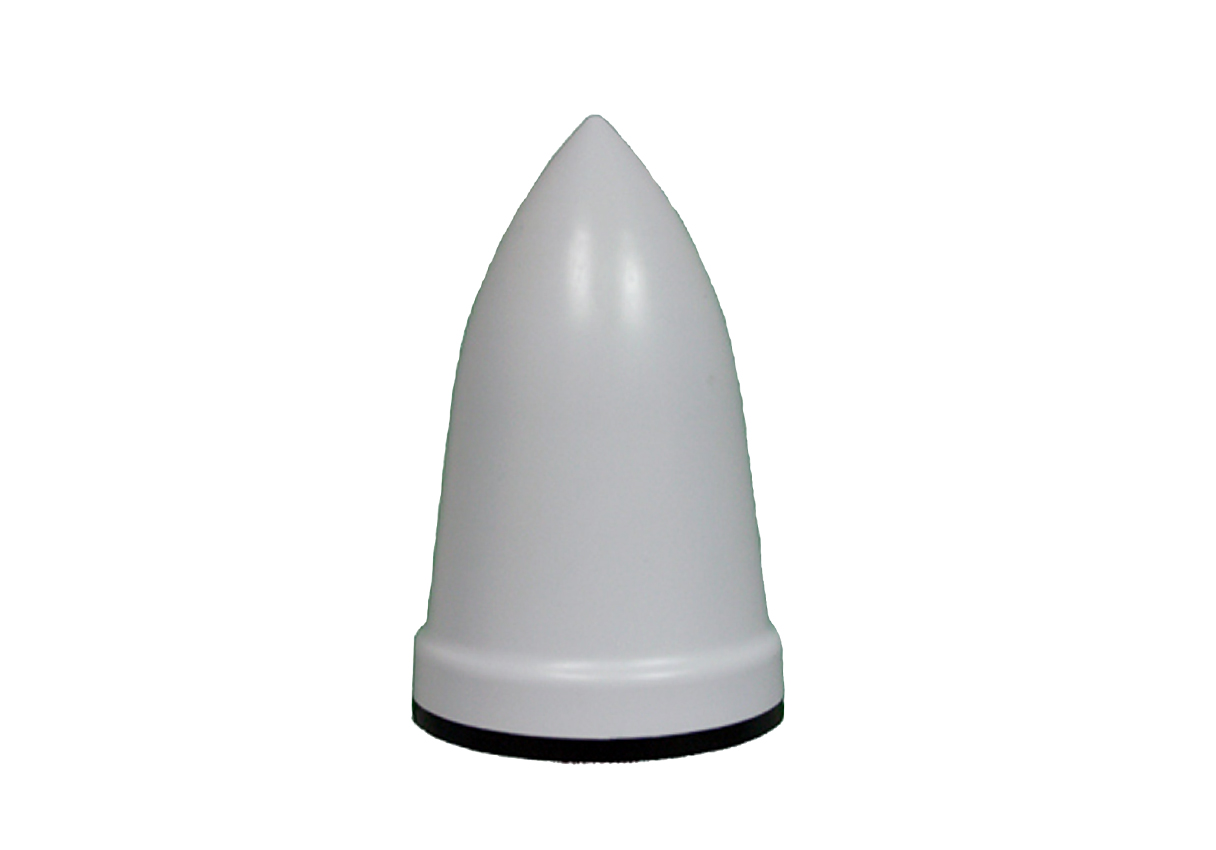

• Protection from the elements – The unique shape of the radome prevents problems with water, ice, and birds perching on it
• Rugged – materials comply with the provisions set forth in the EU RoHS Directive 2002/95/EC

Specifications

Model Variants

• GPS-TMG-26NMS

GPS-TMG-26NMS
