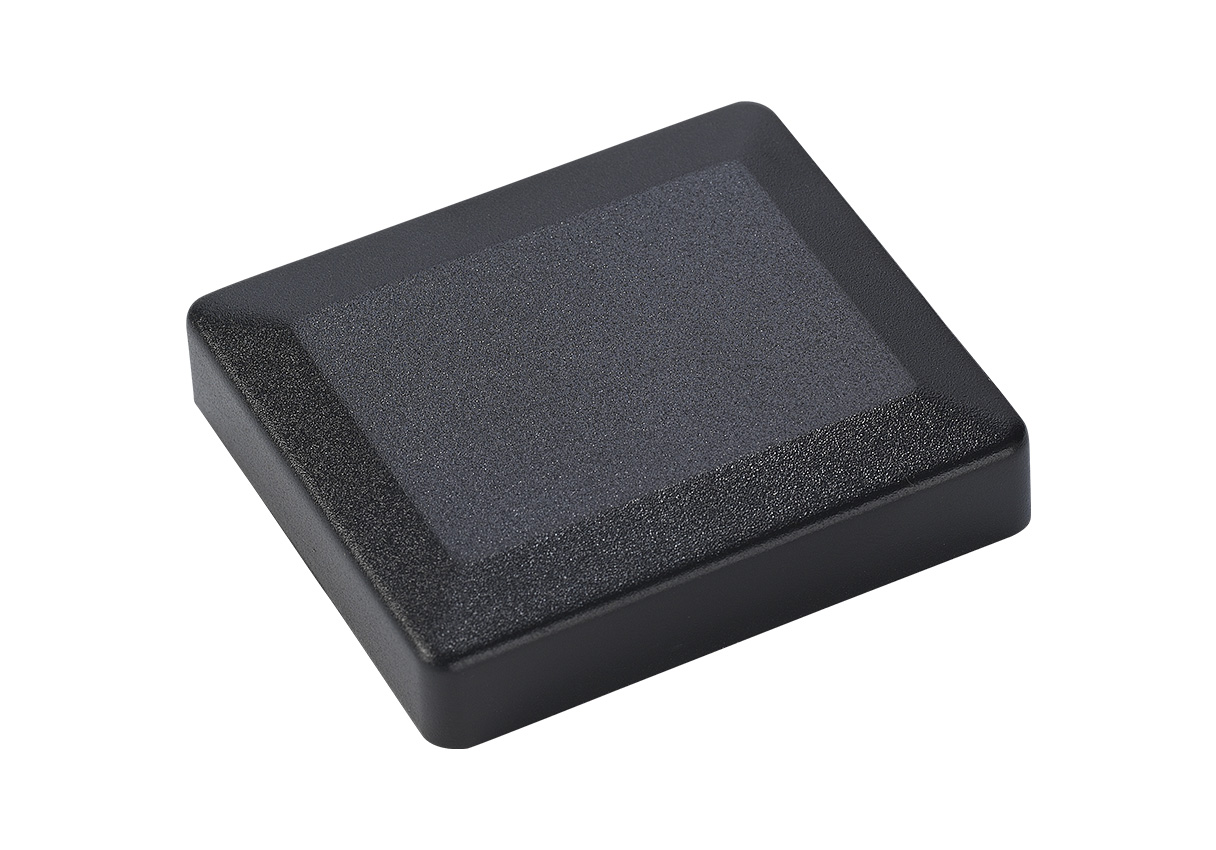

GNSS26GMMSMA – Shielded Glass-Mounted Antenna with High-Rejection GNSS Technology

Proprietary out-of-band rejection in an electrically shielded, glass-mounted antenna

Description

Variants

Downloads

Accessories

Description

This glass-mounted GNSS antenna utilizes an electrically shielded LNA PCB assembly and a ceramic filter designed to provide proprietary high out-of-band rejection for optimal integration in congested RF environments. The assembly is permanently encased in a compact, UV-stable radome.

High performance – 26 dB gain; GPS L1 & GLONASS L1 frequencies
Superior out-of-band rejection for all GNSS frequencies – Through a proprietary filtering design
Ease of Installation – High-Adhesion Tape for Vehicle Windshield Glass Installation
Minimal visibility – Due to the low-profile housing
Enhanced Safety – ESD Protection

Specifications

Frequency	GNSS G1; GNSS L1
Gain	2 dBic
Connector	SMA Plug
Installation	Adhesive, Glass
Max. power	97 W

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

High performance – 26 dB gain; GPS L1 & GLONASS L1 frequencies
Superior out-of-band rejection for all GNSS frequencies – Through a proprietary filtering design
Ease of Installation – High-Adhesion Tape for Vehicle Windshield Glass Installation
Minimal visibility – Due to the low-profile housing
Enhanced Safety – ESD Protection

Specifications

Frequency	GNSS G1; GNSS L1
Gain	2 dBic
Connector	SMA Plug
Installation	Adhesive, Glass
Max. power	97 W
