Name: GL125-DLTEMIMO-SM Coach™ II 5G Cellular, High… | PCTEL
SKU: GL125-DLTEMIMO-SM

Item number: GL125-DLTEMIMO-SM

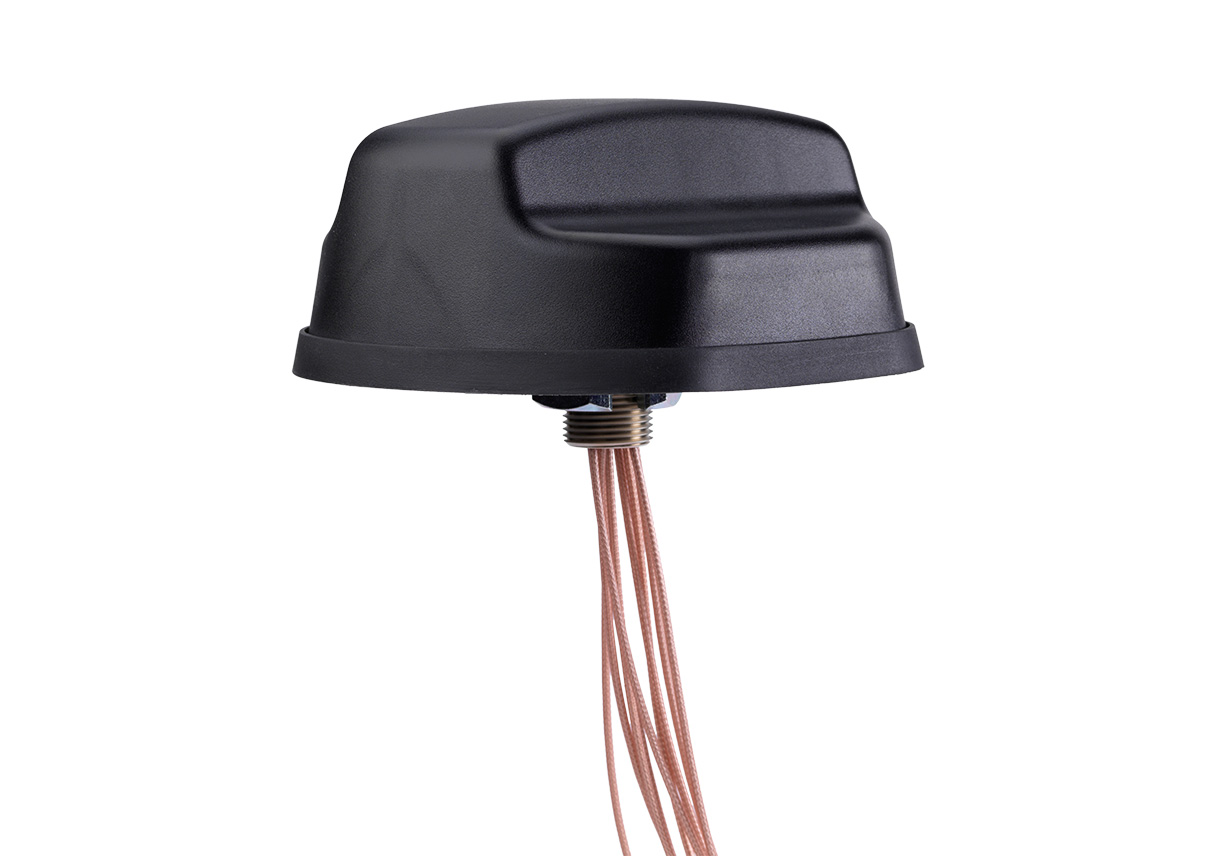

GL125-DLTEMIMO-SM – Coach™ II 5G Cellular, High-Precision GNSS Antenna L1 L2 L5

For positive results in Positive Train Control networks

Description

Variants

Downloads

Accessories

Description

This antenna meets the stringent requirements of RF communication systems in rail transportation applications. With its two LTE elements, dual-band connectivity, and proprietary high-rejection GNSS technology, it provides high-precision tracking and reliability.

Full Multi-GNSS compatibility – covers global GNSS systems
Superior out-of-band rejection – A proprietary filtering design enables wideband coverage for all GNSS frequencies
Easy installation and/or replacement – Metal stud mount with a slotted lock nut provides a single cable exit
Withstands harsh environmental conditions—IP67-compliant design with a custom overmolded gasket protects against water and dust ingress
EN 50155:2007; AAR Compliant

Specifications

Frequency	5G (600 MHz–6 GHz); CBRS/5G NR 3.3–4.2 GHz; GNSS L1; GNSS L2; GNSS L5; GNSS + Cellular + Wi-Fi; Wi-Fi 2.4/5 GHz
Gain	-8 dBic, -7 dBic, -6 dBic, -5 dBic, -4 dBic, -2 dBic, 0 dBic, 1 dBic
Connectors	TNC Male, SMA Male
Installation	Stud, Through-hole
Max. power	25 W
IP Rating	IP67

Model Variants

GL125-DLTEMIMO

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Full Multi-GNSS compatibility – covers global GNSS systems
Superior out-of-band rejection – A proprietary filtering design enables wideband coverage for all GNSS frequencies
Easy installation and/or replacement – Metal stud mount with a slotted lock nut provides a single cable exit
Withstands harsh environmental conditions—IP67-compliant design with a custom overmolded gasket protects against water and dust ingress
EN 50155:2007; AAR Compliant

Specifications

Frequency	5G (600 MHz–6 GHz); CBRS/5G NR 3.3–4.2 GHz; GNSS L1; GNSS L2; GNSS L5; GNSS + Cellular + Wi-Fi; Wi-Fi 2.4/5 GHz
Gain	-8 dBic, -7 dBic, -6 dBic, -5 dBic, -4 dBic, -2 dBic, 0 dBic, 1 dBic
Connectors	TNC Male, SMA Male
Installation	Stud, Through-hole
Max. power	25 W
IP Rating	IP67

Model Variants

GL125-DLTEMIMO
