Mobile low-profile antenna mount for roof installation
Mobile mount for roof mounting of antenna whips, supplied with an external M5 threaded stud. It can be mounted from the inside or the outside.
| Frequency | 0–2,500 MHz (external antenna whips) |
|---|---|
| Plug | See “ORDERING INFO” (Other types available) |
| Cable | See “ORDERING INFO” (Other lengths available) |

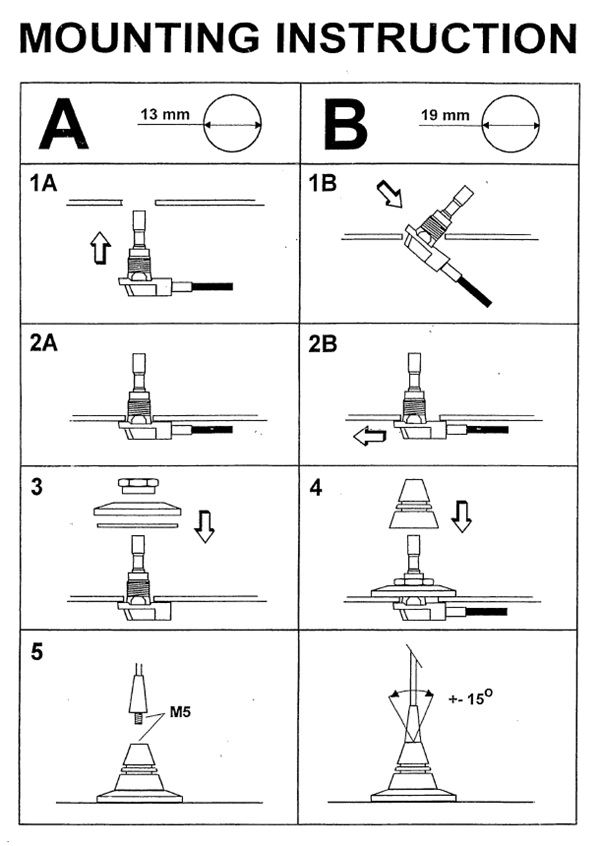

| Installation | Bolt-on (From the inside or outside—maximum torque on the nut: 4.5 Nm) |
| Installation Location | On the vehicle roof |
| IP Rating | IP65 (When mounted) |
G16060 – 0.15 m cable + FME-male
G16060IP – 0.15 m cable + FME-male – Bulk packing
G16062 – 0.15 m cable + SMA-female
G16062IP – 0.15 m cable + SMA-female – Bulk packing
G16064IP – 5 m cable + SMA-male – Bulk packing
G16065IP – 5 m cable + open end – Bulk packing
Mobile mount for roof mounting of antenna whips, supplied with an external M5 threaded stud. It can be mounted from the inside or the outside.
| Frequency | 0–2,500 MHz (external antenna whips) |
|---|---|
| Plug | See “ORDERING INFO” (Other types available) |
| Cable | See “ORDERING INFO” (Other lengths available) |
| Installation | Bolt-on (From the inside or outside—maximum torque on the nut: 4.5 Nm) |
| Installation Location | On the vehicle roof |
| IP Rating | IP65 (When mounted) |
