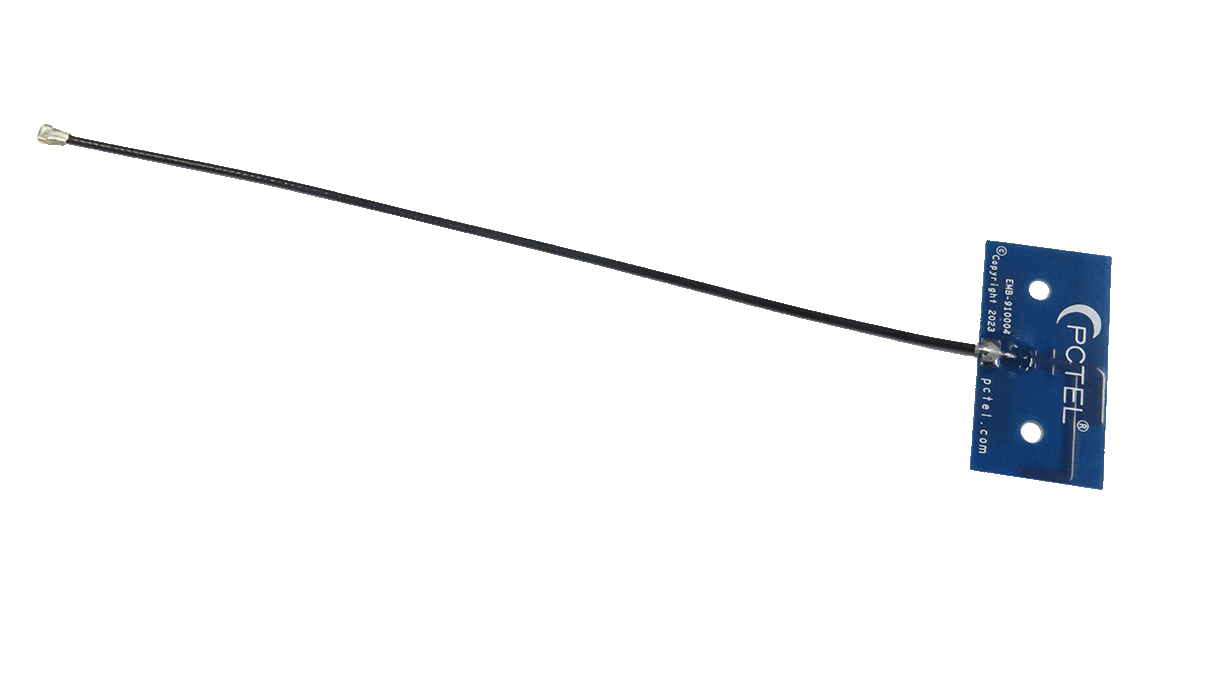

The EMB-910004 antenna is a dual-band dipole designed to cover the 2.4 GHz and 5 GHz Wi-Fi bands. The antenna design consists of 2.4 GHz and 5 GHz half-wavelength dipoles and a 5 GHz reflector. The use of a reflector introduces slight directionality into the 5 GHz radiation patterns and reduces the antenna’s sensitivity to reflective surfaces and/or obstructions located behind the antenna in the direction of the cable. This allows the antenna to be placed in front of an external reflector to direct the radiated energy at 2.4 GHz (if desired) without significantly affecting the 5 GHz return loss and radiation patterns. Additionally, the slight directionality in the 5 GHz radiation patterns can be exploited to improve pattern diversity and increase the overall system coverage area when used in multi-antenna MIMO and MU-MIMO systems.

• Designed to be mounted to a plastic support or directly to a non-metallic surface in the host product using plastic screws/nuts, heat stakes, or other fasteners in the host device
• The low-profile antenna design provides wide coverage patterns in the 2.4 and 5 GHz frequency bands
• Comes with a 6-inch micro-coax cable attached, featuring a U.FL-style connector

Specifications
