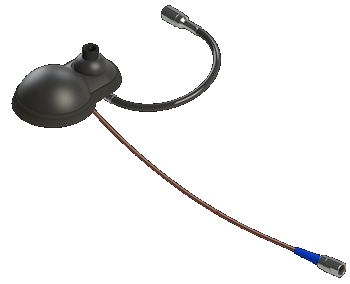

Roof-mounted universal antenna base with integrated active GNSS antenna
Mobile roof mount with integrated coaxial FME-male connector and built-in active GNSS antenna for non-conductive surface mounting of 1/2 λ portable antenna whips with FME- female connector.
| Frekvens | 0 – 2500 MHz, 1561.1 – 1605.4 MHz (External antenna whips/ GNSS) |
|---|---|
| Stik | GNSS: FME-male (Blue) |
| Kabel | 150-200 mm |
| Montering | Bolt-on (From inside only – Maximum torque on nut 4.5 Nm) |
| Monteringssted | On non-conductive vehicle roof etc. |
| IP-klasse | IP65 (When mounted) |
Mobile roof mount with integrated coaxial FME-male connector and built-in active GNSS antenna for non-conductive surface mounting of 1/2 λ portable antenna whips with FME- female connector.
| Frekvens | 0 – 2500 MHz, 1561.1 – 1605.4 MHz (External antenna whips/ GNSS) |
|---|---|
| Stik | GNSS: FME-male (Blue) |
| Kabel | 150-200 mm |
| Montering | Bolt-on (From inside only – Maximum torque on nut 4.5 Nm) |
| Monteringssted | On non-conductive vehicle roof etc. |
| IP-klasse | IP65 (When mounted) |
