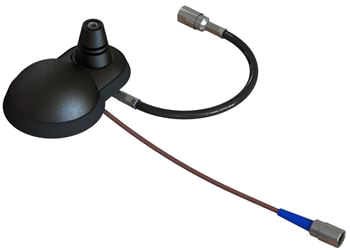

Roof-mounted universal antenna base with integrated active GNSS antenna

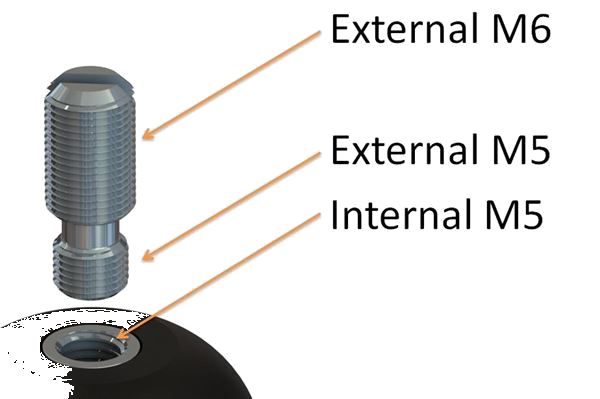

Roof mounted universal antenna base with built-in active GNSS antenna. The base accepts mobile antenna whips with external M5 threaded stud. M5/M6-adapter for optionally mounting of antenna whips with internal M6 thread is supplied
| Frekvens | 0 – 2500 MHz, 1561.1 – 1605.4 MHz (External antenna whips/ GNSS) |
|---|---|
| Stik | GNSS: FME-male (Blue) |
| Kabel | 150-200 mm |
| Montering | Bolt-on (From inside only – Maximum torque on nut 4.5 Nm) |
| Monteringssted | The antenna whip (not supplied) is tiltable 15° in all directions by bending the top section of the base. NOTE! Bending one time only ! |
| IP-klasse | IP65 (When mounted) |
G40001IP – Bulk packing
G40001 – Individually packing in Polybag
