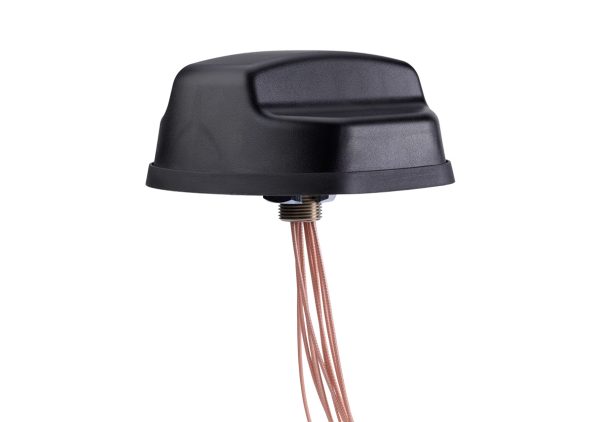

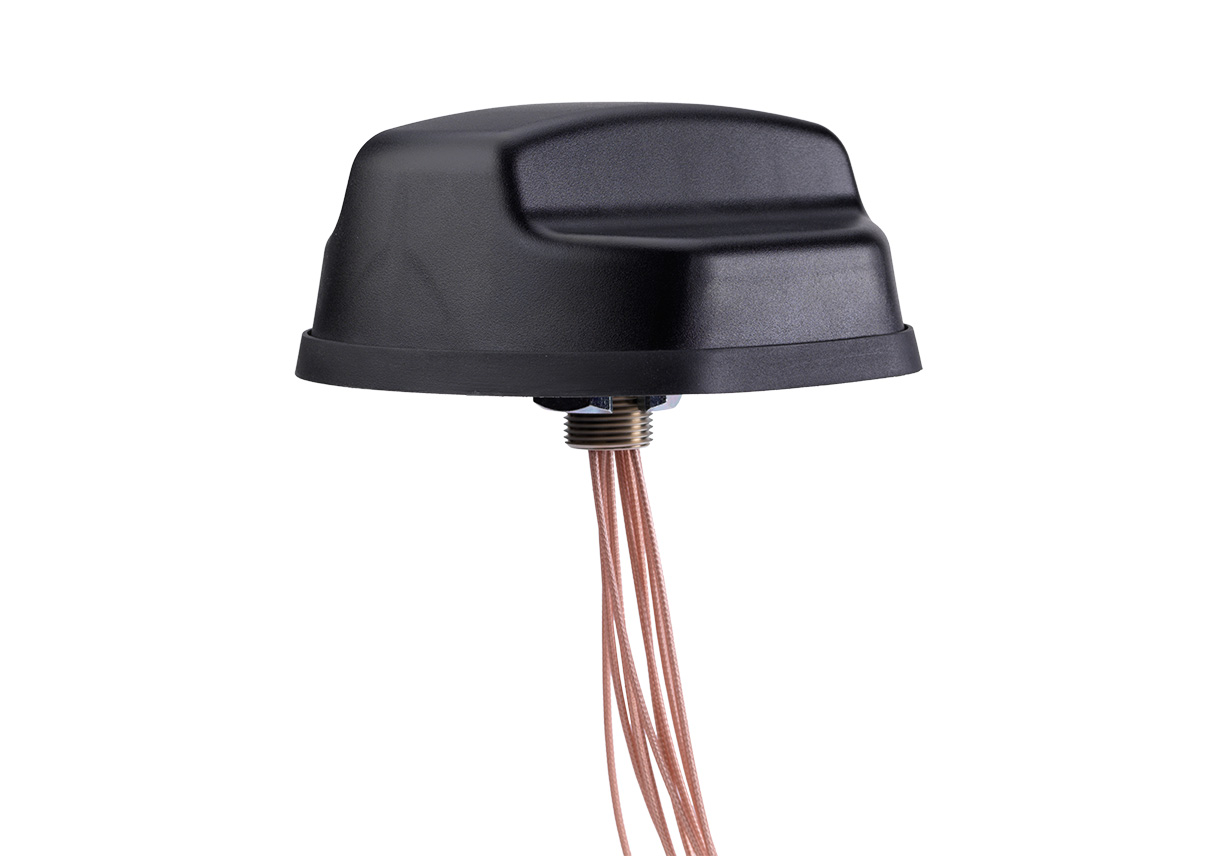

The Coach™ II dual-carrier antenna platform is equipped with FAKRA connectors, enabling fast “Poka-Yoke” installation on routers and gateways equipped with FAKRA, and supports the high-speed requirements of complex RF communication systems used for Intelligent Transportation Systems (ITS) and Industrial IoT applications. These low-profile, high-endurance antennas feature four 5G elements compatible with the world’s leading multi-carrier cellular routers that support frequencies from 600 MHz to 6 GHz, including the Sierra XR90 and XR80 5G radios. The platform also incorporates 802.11ax Wi-Fi MIMO connectivity, with four dual-band 2.4/5 GHz Wi-Fi elements supporting DSRC 5.99 GHz applications. In addition, PCTEL’s proprietary high-rejection multi-GNSS technology is included for high-precision tracking and asset management. The platform meets EN 50155:2007 and AAR requirements for ITS rail and roadway applications.

• Compatible with Sierra Airlink XR90 and XR80 5G Radios
• Combination Antenna, 5G Cellular, Wi-Fi 6e, and GNSS
• Equipped with FAKRA connectors that enable quick “Poka-Yoke” installation on routers/gateways equipped with FAKRA
• Superior out-of-band rejection – A proprietary filtering design enables wideband coverage for all GNSS frequencies
• Easy installation and/or replacement – Metal stud mount with a slotted lock nut provides a single cable exit
• Withstands harsh environmental conditions—IP67-compliant design with a custom overmolded gasket protects against water and dust ingress
• EN 50155:2007; AAR-compliant

Specifications

Model Variants

• COACH2-5X1-17FT-FAKRA, COACH2-5X1-1.5FT-FAKRAM, COACH2-7X1-17FT-FAKRA, COACH2-7X1-1.5FT-FAKRAM, COACH2-9X1-1.5FT-FAKRAM

COACH2-5X1-17FT-FAKRA
COACH2-5X1-1.5FT-FAKRAM
COACH2-7X1-17FT-FAKRA
COACH2-7X1-1.5FT-FAKRAM
COACH2-9X1-1.5FT-FAKRAM
