We sell and stock the vast majority of cable types in various lengths and connector combinations. Contact us to order what you need…
The most common cable types are:
0-6000MHz
Micro coaxial/I-PEX cables are a very thin cable typically used as a connection cable between modem and antenna.
Typically supplied with SMA Chassis + UF.l/I-PEX connector types and a length of 15cm
RG174 – Coax cable 50 Ohm – 0-5800MHz
RG174 is a thinner (2.8cm) cable that is identical to the type of cable most antennas are born with. The cable is lightweight and very flexible to work with and is available with different connector combinations and lengths. Read more about the cable’s properties in the datasheet on this page.
Available with most connector types and in different lengths

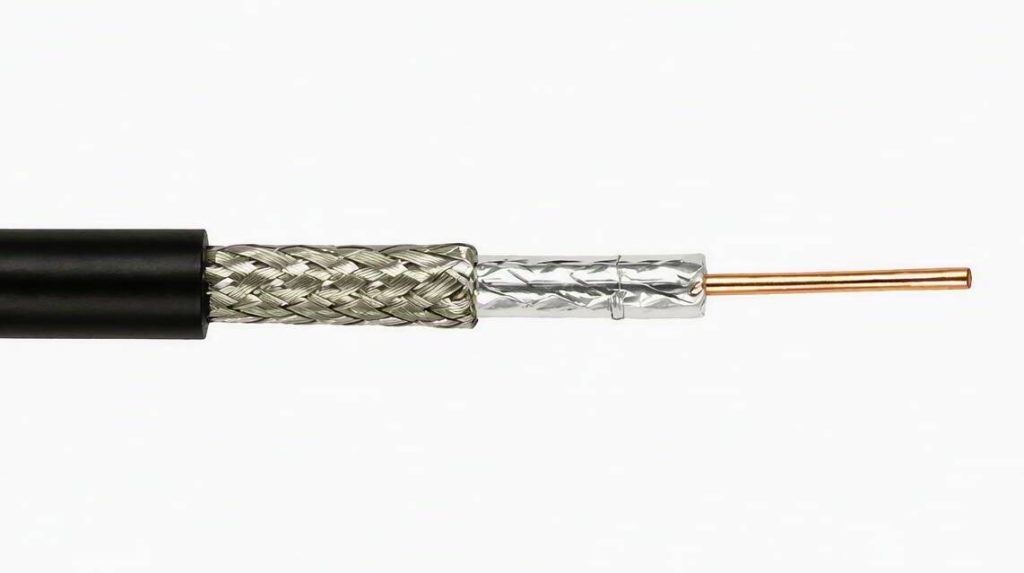

HF 195 – Coax cable 50 Ohm Low loss – 0-5800MHz
HF195 is the most commonly used low loss cable for installations of various equipment and where a longer cable is required up to the antenna. HF195 differs from the old RG58 by having an extra inner shield that gives the cable a lower loss.
We recommend HF195 for installations 1-25 meters. From 20-25 meters extension and up, we recommend RG213 or HF400 instead.
Available with most connector types and we always have the lengths 1-2.5-5-5-10-15-20 and 25m with SMA or N connectors in stock. Can also be delivered on drums or in longer lengths.
RG58 is less commonly used today as it has a higher loss, but has the small advantage that it is a slightly softer cable that makes it a little more flexible to work with.
Available with most connector types and in different lengths.”
RG213 – Coax cable SUPER LOW LOSS – 50 Ohm – 0-3000MHz
High quality cable with very low loss. Typically used for longer installations of 15-50 meters, where greater utilization of the antenna’s amplifying power is desired and where the thicker and slightly stiffer cable (than HF195) can be used in the installation.
Most often used with either SMA or N connectors, and comes in a customized length for the current installation
HF400 – Coax cable ULTRA LOW LOSS – 50 Ohm – 0-5800MHz
High quality cable with minimal loss, even lower than RG213. We recommend this cable for installations with long cable runs of approx. 30 meters+, or for installations where there is minimal room for loss of the antenna’s amplifying power.
Most often used with either SMA or N connectors and comes in a customized length for the current installation.
