LTE 900 MHz Yagi Antenna Series
BY900-XG is a family of LTE 900 MHz Yagi antennas
| Frequency | 870–960 MHz |
|---|---|
| Gain | BY90-10G: 10 dBd, 12.15 dBi BY90-12G: 12 dBd, 14.15 dBi BY90-15G: 15 dBd, 17.15 dBi |
| Connector | Type N female |
| Cable | Approx. 0.5 m RG213/U |
| Length/Height | BY90-10G: 850 x 240 mm BY90-12G: 1250 x 240 mm BY90-15G: 1400 x 210 mm |
| Installation | Fixed Tube Bracket Made of Galvanized Iron (included) |
| Installation Location | On tube (Ø 20–50 mm, vertical or horizontal) |
| Max. power | 150 watts |

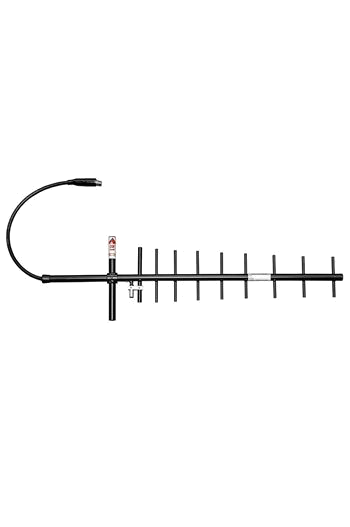

BY90-10G – 10 dBd, 12.15 dBi (included)
BY90-12G – 12 dBd, 14.15 dBi (included)
BY90-15G – 15 dBd, 17.15 dBi (included)
