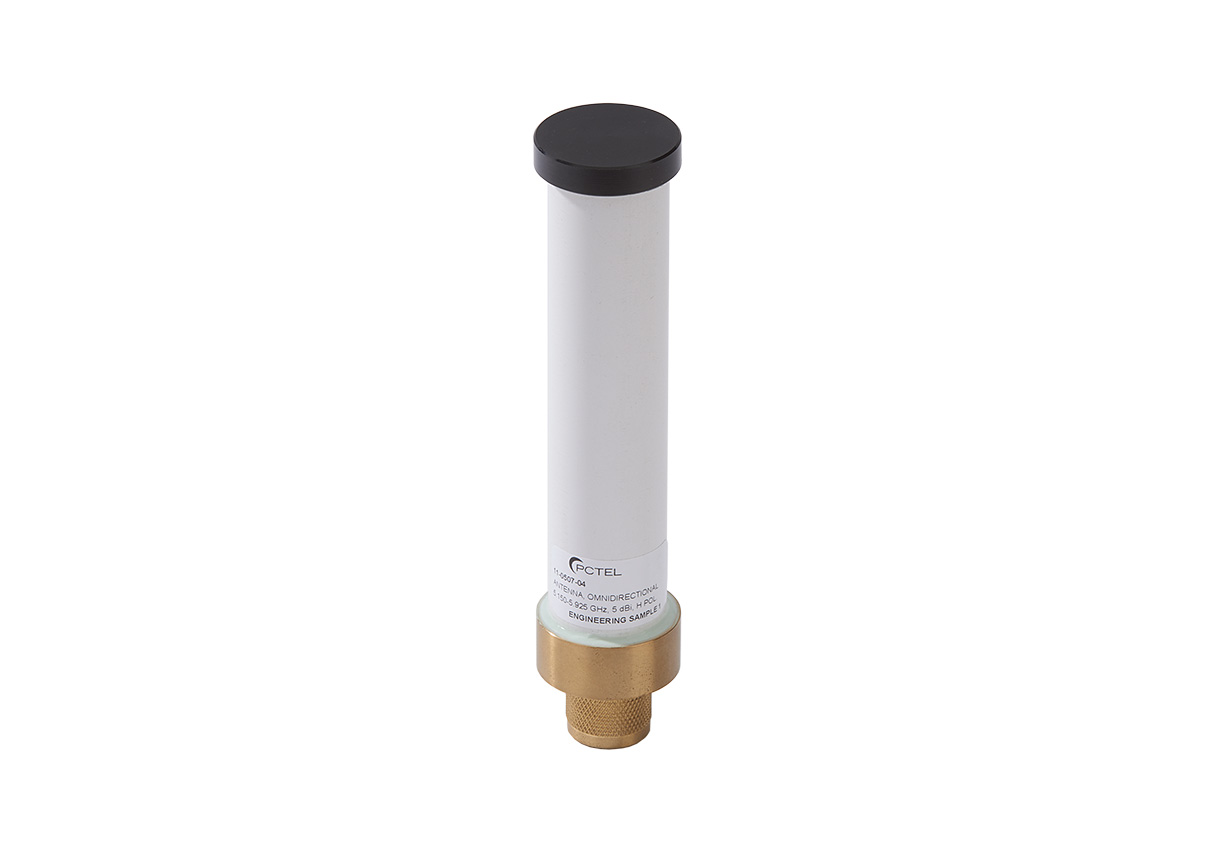

BOAH515905NM – VenU® Horizontally Polarized Omnidirectional Base Station Antennas

For long-lasting operation with outdoor access points

Description

Variants

Downloads

Accessories

Description

These horizontally polarized omnidirectional antennas are designed for long-term operation with outdoor Wi-Fi access points. Their rugged design withstands harsh environments, making them ideal for industrial wireless, enterprise, and military applications.

Designed for harsh environments – Temperature range: -40°C to +85°C; Wind-rated at 125 mph
IP67-compliant design – UV-stable, fiberglass radome; protects against water or dust ingress
DC-grounded design
Ease of installation and connections – Type N male or female connector options; chrome-plated mounting base

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	5 dBi
Connector	N Male, N Female
Installation	Direct RF Connector, Pole
Max. power	40 W
IP Rating	IP67

Model Variants

BOAH515905NF

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Designed for harsh environments – Temperature range: -40°C to +85°C; Wind-rated at 125 mph
IP67-compliant design – UV-stable, fiberglass radome; protects against water or dust ingress
DC-grounded design
Ease of installation and connections – Type N male or female connector options; chrome-plated mounting base

Specifications

Frequency	Wi-Fi 2.4/5 GHz
Gain	5 dBi
Connector	N Male, N Female
Installation	Direct RF Connector, Pole
Max. power	40 W
IP Rating	IP67

Model Variants

BOAH515905NF
