UHF 450 MHz Unity Gain Omni Base Station Antenna
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | BC70-1GT: 380 – 430 MHz BC70-1G: 400 – 475 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | Type N-female |
| Længde/højde | BC70-1GT: 0.80 m BC70-1G: 0.85 m |

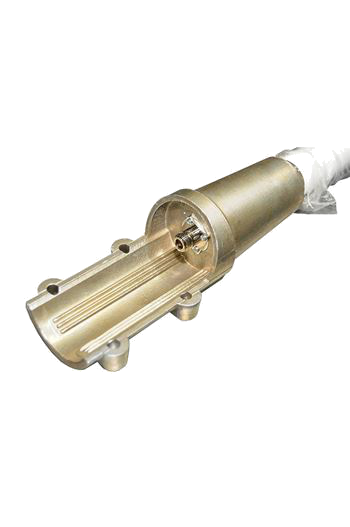

| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 150 Watt |
| IP-klasse | IP66 |
BC70-1GT – 380 – 430 MHz Individually packing in Carton tube
BC70-1G – 400 – 475 MHz Individually packing in Carton tube
BC70-1GH – 500 – 600 MHz Individually packing in Carton tube
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | BC70-1GT: 380 – 430 MHz BC70-1G: 400 – 475 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | Type N-female |
| Længde/højde | BC70-1GT: 0.80 m BC70-1G: 0.85 m |
| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 150 Watt |
| IP-klasse | IP66 |
