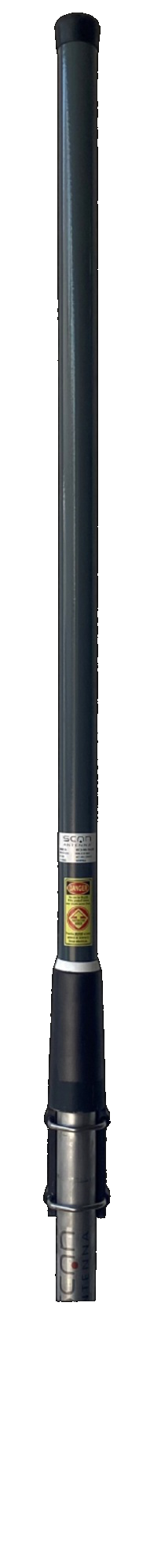

High Power 6 dBd Omni Base Station Antenna for the 450 MHz band
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
| Frekvens | 380 – 512 MHz – center frequency to be defined by customer |
|---|---|
| Gain | 6 dBd, 8.15 dBi |
| Stik | 4.3-10 Female |
| Længde/højde | 3600 mm |
| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 150 W |
| IP-klasse | IP66 |
