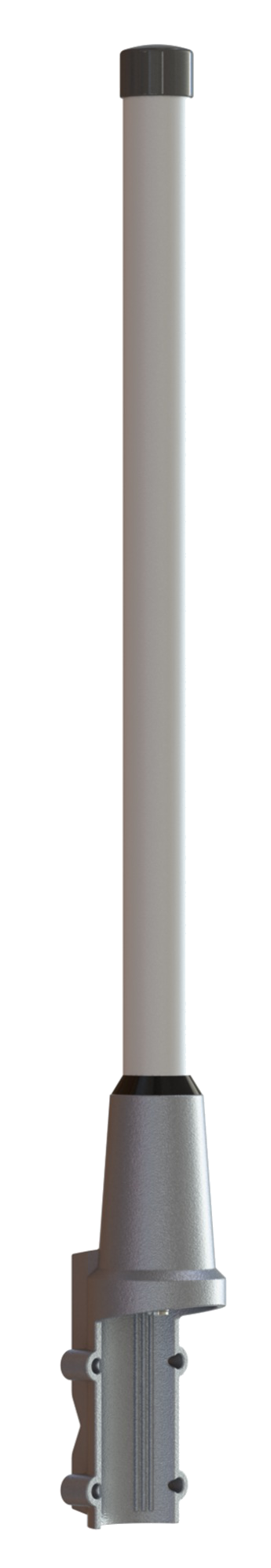

Broadband Unity Gain Omni Base Station Antenna for 225-450 MHz
BC225-450G is a unity gain omnidirectional base station antenna offering supreme bandwidth, VSWR below 2.0 up to 86% of the specified band
| Frekvens | 225 – 450 MHz |
|---|---|
| Gain | 0 dBd, 2.15 dBi |
| Stik | Type N-female |

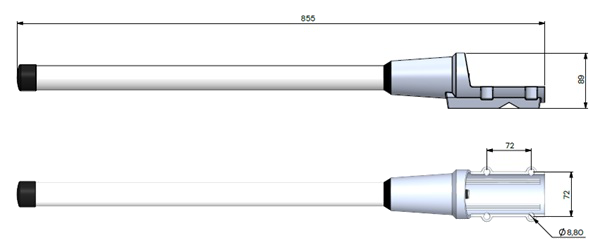

| Længde/højde | 855 mm |

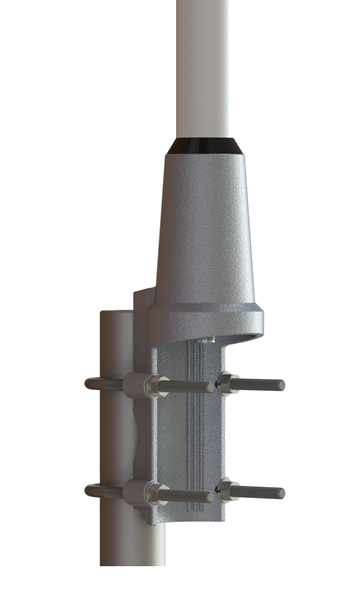

| Montering | Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included. |
| Monteringssted | On vertical mast tube; Ø 30 – 60 mm |
| Max. effekt | 200 W |
| IP-klasse | IP66 |
