Name: AIS54 4 dB AIS Glass Fiber Antenna 1.37 m… | Scan Antennas
SKU: 12054-611

Item number: 12054-611

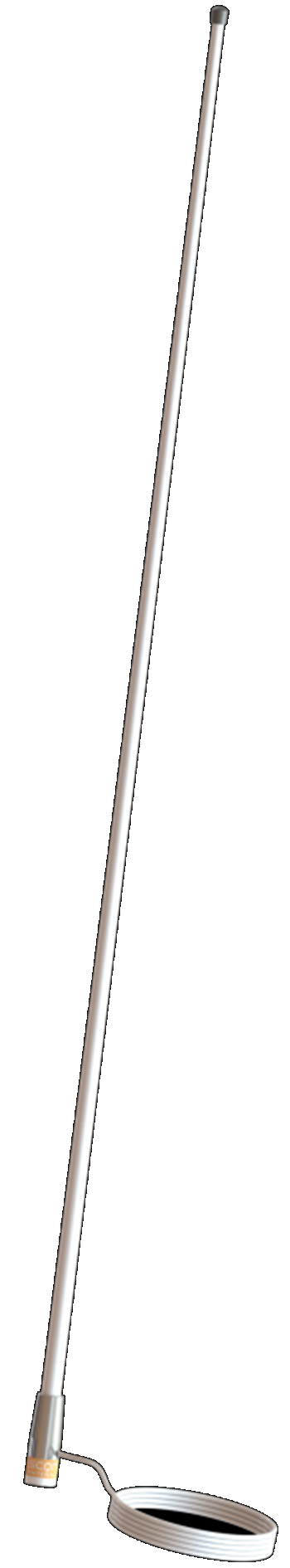

AIS54 – 4 dB AIS Glass Fiber Antenna, 1.37 m, with a fixed 10- or 20-meter cable

4 dB AIS Glass Fiber Antenna, 1.37 m, with a fixed 10- or 20-meter cable

Description

Variants

Downloads

Accessories

Description

Long-Range, High-Gain International Maritime AIS Antenna for the Leisure Market

AIS antenna designed specifically for recreational boats
An economical replacement for all professional marine AIS antennas
Improved gain compared to other high-quality marine AIS antennas
Reduced antenna weight compared to similar marine AIS antennas
Matching designs are available for other frequency bands
For mounting on all US-style brackets with a 1″-14NF threaded stud

Specifications

Frequency	161.5–162.5 MHz (International AIS band)
Gain	4 dB (Marine), 0.5 dBd, 2.6 dBi
Connector	No connector included
Cable	10 or 20 m white RG58 cable
Length/Height	1,375 mm
Installation	On brackets with a 1″-14NF threaded stud (U.S. style)
Installation Location	On deck or on the mast
Max. power	150 W

Model Variants

12054-611 – Antenna with 10 m cable – in a polybag
12054-612 – Antenna with 10 m cable – in a cardboard tube
12054-621 – Antenna with 20 m cable – in a polybag
12054-622 – Antenna with 20 m cable – in a cardboard tube
