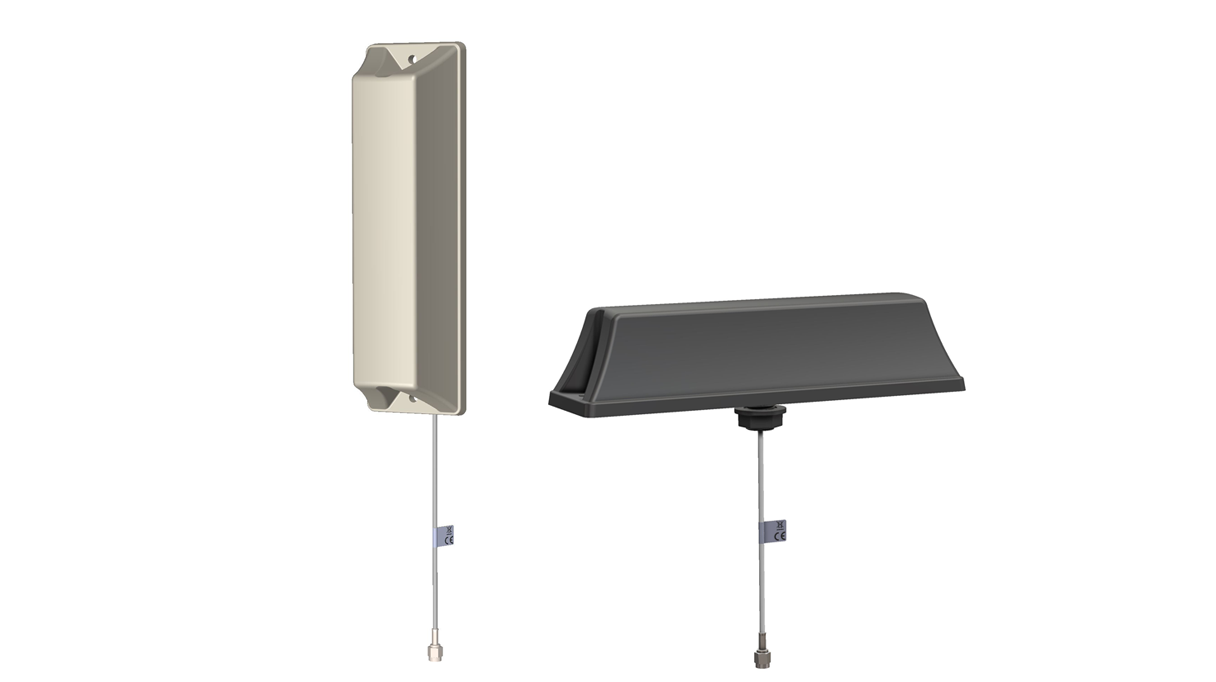

Single port LTE450 Wideband Antenna in a Low-Profile Housing
The Smarteq™ LP450 Wide is a rugged, low-profile multiband antenna that operates simultaneously in the LTE450 and 5G band. With omnidirectional performance down to 430 MHz, it ensures stable and consistent wireless communication in demanding environments, such as rural and remote areas, for maximum coverage and performance. Typical applications are mission critical communications and utilities/smart grids.
| Frekvens | 2G; 3G; 4G/LTE; 5G (600 MHz-6 GHz); LTE 700/900 MHz; FirstNet 758-798 MHz; LoRa/ISM 806-960 MHz; LTE450 410-470 MHz |
|---|---|
| Gain | -1.5 dBi, -1 dBi, 1 dBi, 2.5 dBi, 3 dBi, 3.5 dBi, 4 dBi, 5 dBi |
| Stik | SMA-, FAKRA |
| Montering | Adhesive, Screw, Through hole |
| Max. effekt | 452 W |
| IP-klasse | IP65 |
710794
710795
The Smarteq™ LP450 Wide is a rugged, low-profile multiband antenna that operates simultaneously in the LTE450 and 5G band. With omnidirectional performance down to 430 MHz, it ensures stable and consistent wireless communication in demanding environments, such as rural and remote areas, for maximum coverage and performance. Typical applications are mission critical communications and utilities/smart grids.
| Frekvens | 2G; 3G; 4G/LTE; 5G (600 MHz-6 GHz); LTE 700/900 MHz; FirstNet 758-798 MHz; LoRa/ISM 806-960 MHz; LTE450 410-470 MHz |
|---|---|
| Gain | -1.5 dBi, -1 dBi, 1 dBi, 2.5 dBi, 3 dBi, 3.5 dBi, 4 dBi, 5 dBi |
| Stik | SMA-, FAKRA |
| Montering | Adhesive, Screw, Through hole |
| Max. effekt | 452 W |
| IP-klasse | IP65 |
