Name: 510329 K5065421 VHF Roof-Mount Car Antenna | PCTEL
SKU: 510329

Item number: 510329

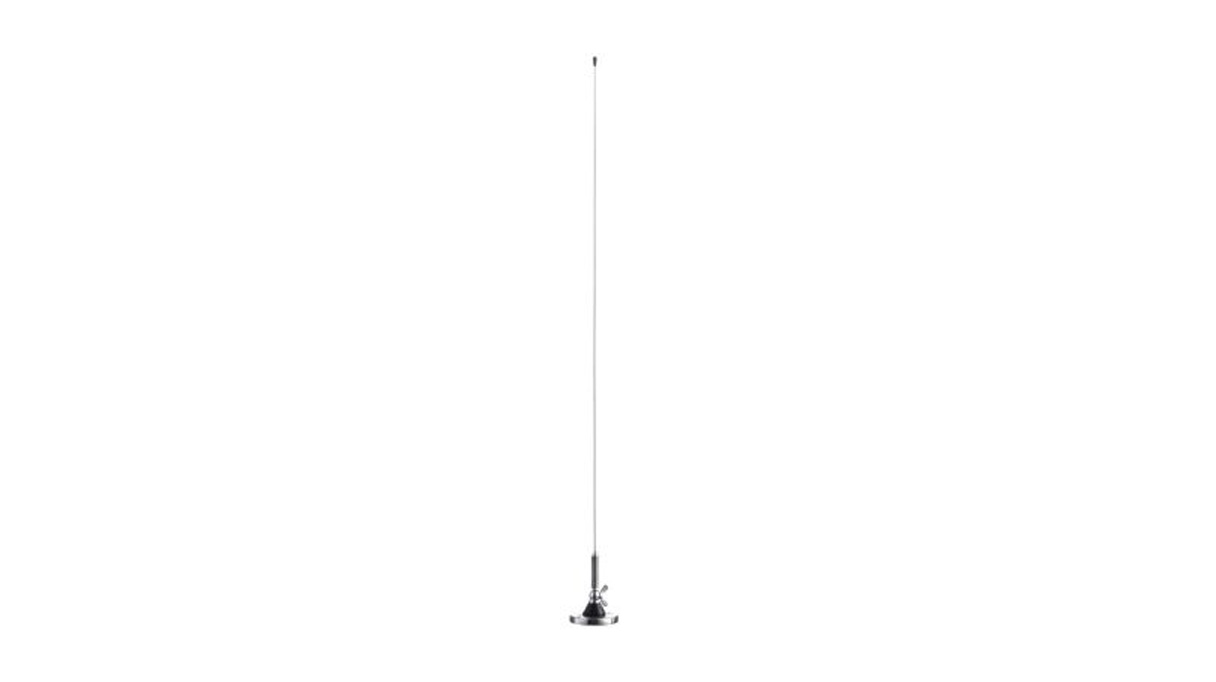

510329 – K5065421 VHF Roof-Mounted Car Antenna

K5065421 VHF Roof-Mounted Car Antenna

Description

Variants

Downloads

Accessories

Description

Kathrein K5065421 tunable VHF car antenna, 74.215 – 77.655 MHz / 84.015 – 87.455 MHz.

Whip and spring: Stainless steel
Swivel-joint parts: Chrome-plated brass
Tuning case: Nickel-plated brass.
Base: Weather-resistant plastic.
74.215 – 77.655 MHz / 84.015 – 87.455 MHz,
0 dB Gain
Clamping device for RG58 cable
In a 12-mm-diameter borehole

Specifications

Frequency	Lowband 27–60 MHz
Installation	Through-hole
Max. power	20 W

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Kathrein K5065421 tunable VHF car antenna, 74.215 – 77.655 MHz / 84.015 – 87.455 MHz.

Whip and spring: Stainless steel
Swivel-joint parts: Chrome-plated brass
Tuning case: Nickel-plated brass.
Base: Weather-resistant plastic.
74.215 – 77.655 MHz / 84.015 – 87.455 MHz,
0 dB Gain
Clamping device for RG58 cable
In a 12-mm-diameter borehole

Specifications

Frequency	Lowband 27–60 MHz
Installation	Through-hole
Max. power	20 W

Downloads
