Name: 510173 Kathrein K7057219 UHF Roof-Mount Antenna | PCTEL
SKU: 510173

Item number: 510173

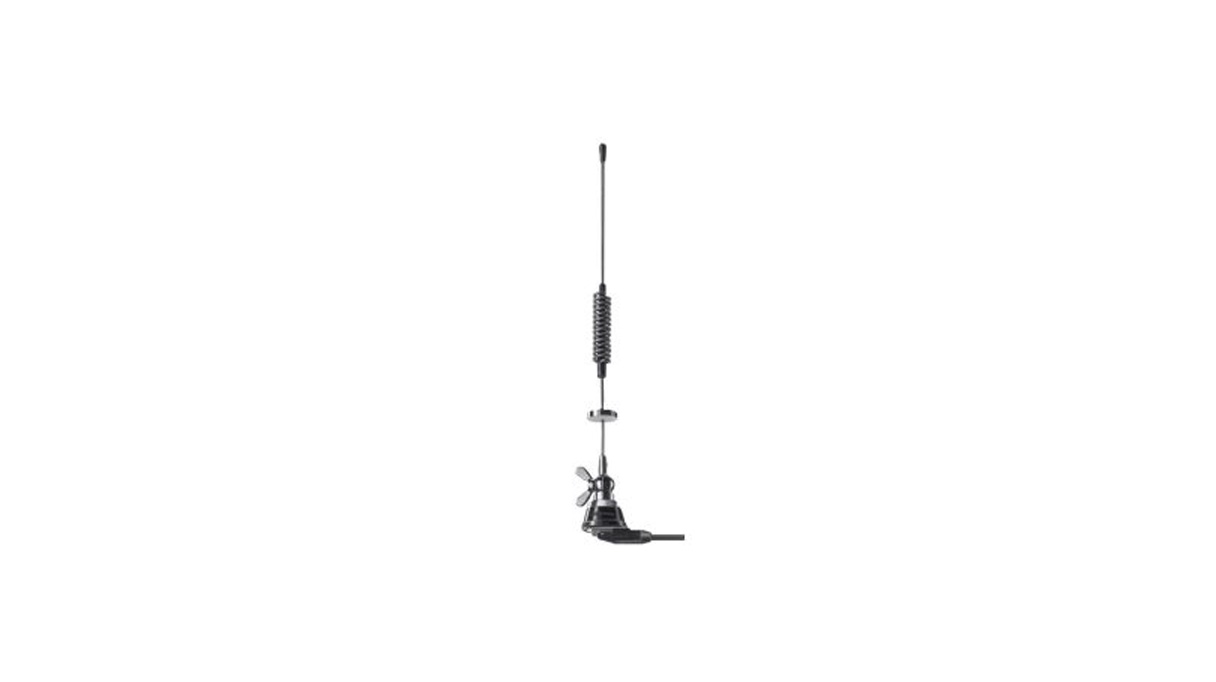

510173 – Kathrein K7057219 UHF Roof-Mount Antenna

Kathrein Antenna K7057219 UHF Roof Mount

Description

Variants

Downloads

Accessories

Description

Roof-mounted antenna, 380–430 MHz / Car radio, AM/FM

Whip: Stainless steel
Parts of the swivel joint and tuning disc: Chrome-plated brass
Base: Weather-resistant plastic
380–400 MHz: 2 dB gain
406–430 MHz: 4 dB gain
RG58 fixed cable, 5 meters long, no connector
In a 24-mm-diameter borehole

Specifications

Frequency	UHF 380–520 MHz
Installation	Through-hole
Max. power	50 W

Variants

Downloads

Accessories

Beskrivelse

Downloads

Beskrivelse

Roof-mounted antenna, 380–430 MHz / Car radio, AM/FM

Whip: Stainless steel
Parts of the swivel joint and tuning disc: Chrome-plated brass
Base: Weather-resistant plastic
380–400 MHz: 2 dB gain
406–430 MHz: 4 dB gain
RG58 fixed cable, 5 meters long, no connector
In a 24-mm-diameter borehole

Specifications

Frequency	UHF 380–520 MHz
Installation	Through-hole
Max. power	50 W
